Product Details:
|
| Product Name: | 10 Ton Electric Winch | Warranty: | 3 Years |
|---|---|---|---|
| Power Supply: | Diesel Engine | Color: | Customer Requirement |
| Material: | Steel | Rated Speed: | As Demands |
| Power Source: | Electric | Voltage: | 380V 3Ph AC Or Customized |
| High Light: | Industrial Electric Winch Machine 10 ton,380V Electric Winch Machine,lightweight Electric Winch Machine |
||
Easy Operation Fast Speed Industrial Electric Winch Machine

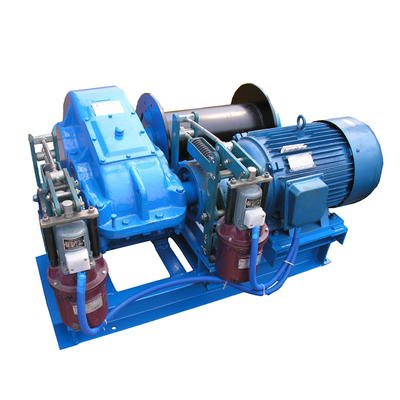

Electric Winch Machine Description
Electric winch or windlass is a kind of widely used machine in lifting machinery field. 10 ton Electric Winch mainly used for large and oversize concrete of steel installation and disassembly of mechanical equipment.This structural characteristic is wirerope orderly arrangement lifting is safe and realiable.It is suitable for bridge port and ect road and bridge engineering and large factories and mines engineering equipments installation.
Electric Winch Machine Drawing
Electric Winch Machine Parameters
| WINCH TECHNIQUE PARAMETER | ||||||||||||
| Rated load (KN) | Rated speed (m/min) | Rope capacity (m) | Rope Diameter (mm) | Motor type | Motor power (KN) | Overall dimension (mm) | Weight(Kg) | Type | ||||
| JK MODEL FAST SPEED ELECTRONIC CONTROL WINCH | JK0.5 | 5 | 22 | 190 | 7.7 | Y100L-4 | 3 | 620*701*417 | 200 | / | ||
| JK1 | 10 | 22 | 100 | 9.3 | Y112M-4 | 4 | 620*701*417 | 300 | / | |||
| JK1.6 | 16 | 24 | 150 | 12.5 | Y132S-4 | 5.5 | 945*996*570 | 500 | / | |||
| JK2 | 20 | 24 | 150 | 13 | Y132M-4 | 7.5 | 945*996*570 | 550 | / | |||
| KK3.2 | 32 | 25 | 290 | 15.5 | YZR180L-6 | 15 | 1325*1335*840 | 1011 | / | |||
| JK3.2B | 32 | 30 | 250 | 15.5 | YZR200L-6 | 22 | 1900*1738*985 | 1500 | / | |||
| JK5 | 50 | 30 | 300 | 21.5 | YZR225M-6 | 30 | 1900*1620*985 | 2050 | / | |||
| JK5B | 50 | 25 | 210 | 21.5 | YZR225M-8 | 22 | 2250*2500*1300 | 2264 | / | |||
| JK8 | 80 | 25 | 160 | 26 | YZR280S-8 | 45 | 1533*1985*1045 | 3000 | / | |||
| JK10 | 100 | 30 | 300 | 30 | YZR315S-8 | 55 | 2250*2500*1300 | 5100 | / | |||
Electric Winch Machine Advantages
Packing and Delivery
Our Advantage
FAQ
1. Q: What’s your MOQ?
A: 1 Set;
2. Q: What’s your delivery period?
A: Within 10/25/40 days after your prepayment received; exact period should be based on detailed requirements and actual period;
3. Q:If I want to customize my product, what should I do?
Please contact the customer service, tell us your needs, there will be a professional technical personnel and you discuss the details and solutions.
4.Q: Do you provide lift tools?
A: Yes, we can provide any kinds of lift tools such as lift sling belt, lift clamp, grab, magnet , pulley blocks, hook, lock catch, wire rope, fiber rope, etc.
