Product Details:
|
| Product Name: | Overhead Eot Crane | Voltage: | 220v /380v /415v |
|---|---|---|---|
| Color: | Customized | Feature: | Easy Operation Safety Convenience,Customized According To Customer Requirements,Low Noise |
| Warranty: | 3 Years | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical Support |
| High Light: | Single Girder Overhead Eot Crane,European Model Single Girder Eot Crane,Single Girder Eot Crane 415v |
||
Advanced Design European Model Single Girder Overhead eot Crane
Overhead eot Crane Description
Advanced Design European Model Single Girder Overhead eot Crane for the low workshop and high lifting height demands. Its technology is advanced and design is based on international standard: DIN (Germany), FEM (Europe), and CE,ISO (International),working class A5.
It is widely used in many kinds of workshop and warehouse with low headroom,but need more lifting height. such as accessories manufacturing workshop. Glass warehouse. Power plant. Heavy materials logistic. paper making, steel manufacturing workshop and other material handling plant.

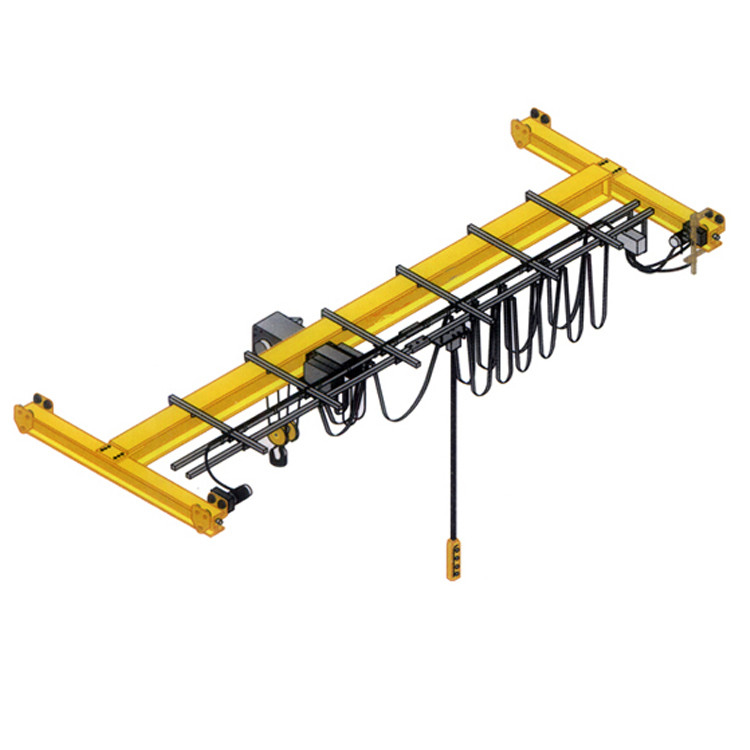

Overhead eot Crane Drawing
Overhead eot Crane Parameters
| Capacity | t | 1,2,3,5,10 | 16,20 | |
| Span | m | 7.5-22.5 | ||
| Lifting height | m | 6,9,12,18,24,30 | 12,18,24,30 | |
| Speed | Lifting | m/min | 8,8/0.8,7/07 | 3.5,3.5/0.35 |
| Cross travel | m/min | 20,30 | 20,30 | |
| Long travel | m/min | 20,30,45,60,75 | ||
| Electric hoist | type | CD/MD | CD/MD/HC | |
| Working duty | A3 | A3 | ||
| Power supply | AC | 380V/50HZ/3P | 380V/50HZ/3P | |
Overhead eot Crane Main Features
Overhead eot Crane Safety Devices
Reasonable structure,strong bearing capacity.
Alarm indicator.
Reducer anti-fall, anti-lock.
Outdoor hoist with a rain cover.
Low noise, soft starting and stopping.
Parts Of Crane
About Us
Dowellcrane Machinery Group is a China-leading group of crane businesses which was founded in 1955, Only one company has 60years manufacture experience. And serving a broad range of customers all over the world to provide a complete set of advanced lifting project, including Gantry crane, Bridge crane, Jib crane, Accessory. Our clients include manufacturing and process industries, shipyards, ports and so on. Regardless of your lifting needs, dowellcrane Machinery Group is committed to providing you with lifting equipment and services that increase the effectiveness and value of your business.
FAQ
Q. What's the information should I provide when inquiry?
More details or drawings, better.
A: Lift capacity B: span C: lift height D: power sourceor other specials you give us will be more appreciated.
Q. How many operating methods for my selection?
Standard operating methods:
A: pendent controller with push buttons .B: remote control with push buttons
C: cabin(space capsule seat) control with joystick. Choose any type as you like.
Q. Can this type work in hazardous environment?
A:Sure! We can customize for you, acid proof or explosion proof, no problem for that.
Q. Can you provide the serious lifting tools?
A:Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!
Q. How can we install the crane?
A:Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
Q. Safety device
A:Overload limiter, Limit Switch (lifting and traveling), Interlock protection device.
