Product Details:
|
| Span: | 3~40m | Cantilever Length: | 0-15m |
|---|---|---|---|
| Rated Lifting Moment: | 550KN | Lifting Speed: | 5-15M/MIN |
| Trolley Running Speed: | 20-40M/MIN | Crane Running Speed: | 30-50M/MIN |
| Control Method: | Cabin Control/wire Rope Remote Control | Power Supply: | 3 Phase 380V 50hz Or Request |
| Work Duty: | A5~A7 | Control: | Remote , Pendant Line , Cabin |
| High Light: | Heavy Duty gantry crane,40M/MIN Warehouse gantry crane,550KN Warehouse gantry crane |
||

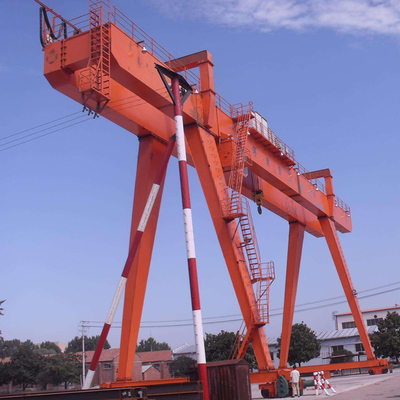

Customized design Professional Heavy Duty warehouse gantry crane
warehouse gantry crane Description
This type of Gantry crane is General double girder gantry crane.
The rated lifting weight is 5~500 ton;
It can be with cantilever on both side of crane;
The working duty is heavy A5~A7 class (ISO);
Lifting hook can be grab, magnet, hanging-beam for special industry;
The ambient working temperature could be -40~50 degree;
Electrical part could be China brand and Europe brand, customers could tell us their choices.
warehouse gantry crane Technical Parameters
| Loading capacity | 5 ~ 800t |
| Lifting height | 3 ~ 30 m or customized |
| Lifting speed |
Single speed: 3 ~ 8 m/min; or customized Variable frequency speed: 1 ~ 20 m/min; or customized |
| Span | 5~35 m |
| Lifting mechanism | Winch trolley or hoist trolley |
| Working class | A3 ~ A7 |
| Working temperature | -20 ~ 40 ℃ |
| Power supply | AC-3Phase-220//230380/400/415/440V-50/60Hz |
| Control voltage | DC-24 / 36V |
| Motor protection class | IP54 IP55 IP65 |
| Control way | Ground handle control(Push button),wireless remote control,cabnient control |
| Safety device | Buffer,current overload protection,overload device,power failure protection |
| Application area | Factory,workshop,warehouse,power station,logstic,etc. |
| Painting color | Yellow,Red or Customzied |
Safety devices of warehouse gantry crane
1.Steel structure: Q235B/Q345B carbon structural steel with seamless once forming technology more strong and elegant. Suitable for different operation temperature;
2. Lifting mechanism: Reducer, drum, motors protection class F class, China or World top quality motor brands, such as Jiamusi, Nanjing motor, ABM, etc;
3. Hook: Finest steel forged hook, long using life;
4. Wheels: Vacuum casting, with compact structure, convenient maintenance, high transmission efficiency and long service life;
5. Travel mechanism: With China or world famous crane motor, reducer supplier, such as Nanjing motor, SEW etc;
6. Electrics: Chint, Schneider or Siemens etc.
warehouse gantry crane Schematic drawing
Main features
1. good stability, high efficiency, safety and reliability;
2. Low deflection and high stiffness;
3. Variable span convenient adjustment and convenient operation;
4. Unique pin connection, firm and reliable, easy to install;
5. A-type fracture surface, continuous girder with low center of gravity, convenient and reliable;
6. The machine can accomplish the build of girders with carrying and erection at the same time.
Safety devices
Our Service
Inquiry notice ! ! !
If you want to inquire about our gantry crane, please confirm with us the details as below. Then we will quote you a suitable price more quickly.
1. Lift capacity?
2. Span?
3. Lift height?
4. Power supply in your local?
5. Nearest port?
6. What kind of goods will this crane lift?
