Product Details:
|
| Product Name: | European Standard Electric Wire Rope Hoist | Color: | Customized |
|---|---|---|---|
| Capacity: | 3-25 Ton | Usage: | Construction Hoist |
| Power Source: | Electric | Type: | Lifting Equipment |
| Control Method: | Pendent Control Or Remote Control | Warranty: | 2 Years |
| High Light: | Electric Wire Rope Construction Hoist,10 Ton Electric Wire Rope Hoist,6m Electric Wire Rope Hoist |
||

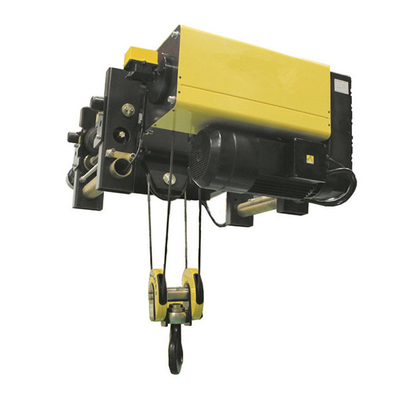

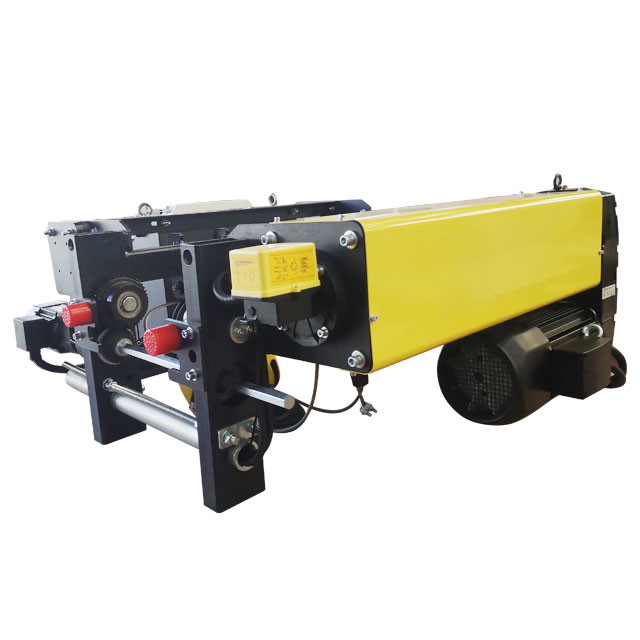

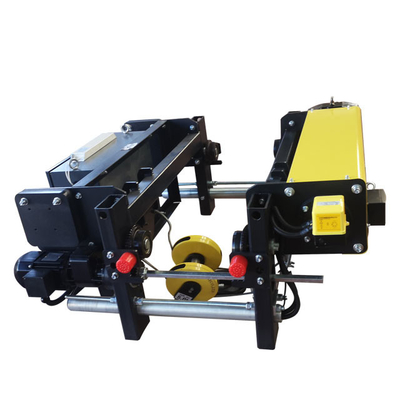

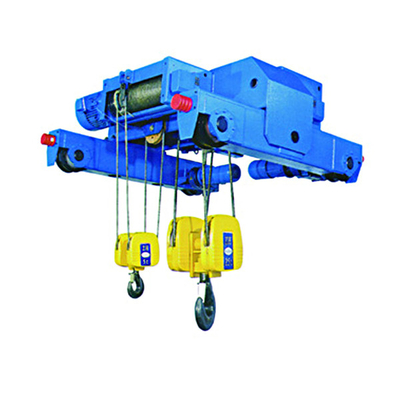

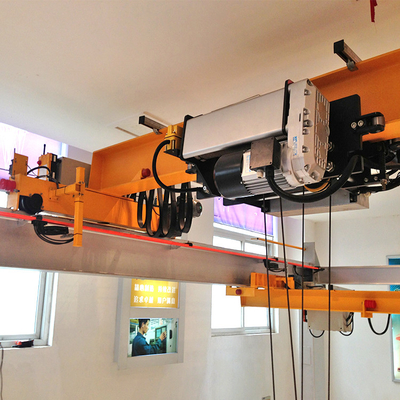

European Standard Electric Wire Rope Hoist 3 Ton 5 Ton 10 Ton On Sale
Product Description
The European Standard Electric Wire Rope Hoist is a versatile machine that can be used in a range of different industries, including manufacturing, construction, mining, and more. It is designed to lift a wide range of loads, from light to heavy, and can be adjusted to suit the specific needs of your business.
One of the key features of the European Standard Electric Wire Rope Hoist is its precision and accuracy. It has been designed to lift loads smoothly and securely, with minimal stress or strain on the equipment or the load. This makes it the ideal choice for sensitive or delicate lifting applications, such as in the manufacturing of fragile or perishable goods.
The hoist also has a range of safety features that make it one of the most secure and reliable lifting machines available. It is equipped with an emergency stop button, an overload protection system, and a brake that prevents the load from slipping or falling. It also comes with a range of additional safety devices, such as limit switches, anti-collision sensors, and safety hooks.
Product Features
1. Freely provide project designing, process designing, choosing suitable equipment for you.
2. Accompany you to complete the acceptance of the equipment,draft the construction scheme and detailed
process, and complete process of export
3. 100% positive feedback
4. 12 months warranty
5. Professional technicians provide installation, commissioning services
6. Technical advisory for any time
Technical Parameters
| Working duty | M6 | |||
|---|---|---|---|---|
| Lifting height | m | 6 | 9 | 12 |
| Lifting speed | m/min | 0.66/4 | ||
| Pulley ratio | 4/1 | |||
| Traveling speed | m/min | 2~20 | ||
| Max Wheel Load | KN | 34.7 | 34.8 | 34.9 |
| Total weight | kg | 650 | 690 | 730 |
| Main dimension | mm | 6 | 9 | 12 |
| width of main beam | b | 300~450 | ||
| Lifting side width | K1 | 560 | 560 | 560 |
| Operation side width | K2 | 550 | 550 | 550 |
| Hoist length | l | 1140 | 1320 | 1500 |
| Hook superior limit | h | 700 | 700 | 700 |
