Product Details:
|
| Product Name: | Wall Mounted Jib Crane | Slewing Degree: | 0~360° |
|---|---|---|---|
| Control Mode: | Pendent Wire Control Or Remote Control | Application: | Widely Used |
| Operating Environment: | -25 ~40 Degree | Working Duty: | A3/A4 |
| Color: | Clients' Requirments | Warranty: | 3 Years |
| Condition: | New | Feature: | Jib Crane |
| High Light: | Customized Wall Mounted Jib Crane,A4 Wall Mounted Jib Crane,40 Degree Wall Mounted Jib Crane |
||
Hoisting Machinery Customized Wall Mounted Jib Crane With Factory Price

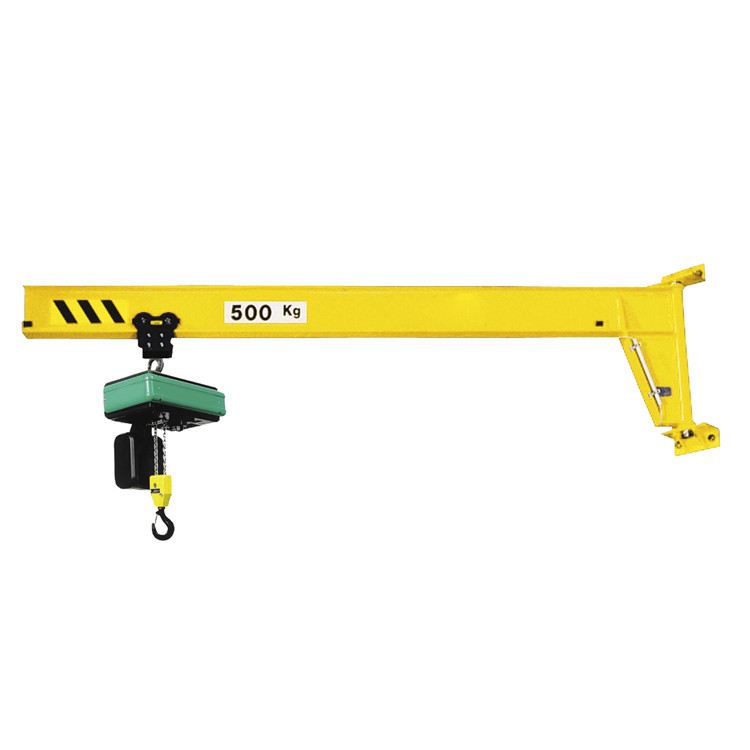

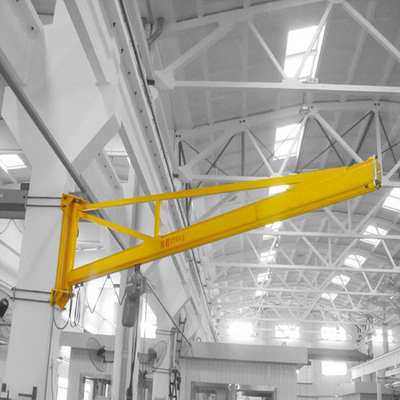

Wall Mounted Jib Crane Description
The design of the Wall Mounted Jib Crane is compact and sleek, taking up minimal floor space while providing endless lifting power. The crane is also easy to install, taking no more than a few minutes to set up and attach to the walls.
Not only is the Wall Mounted Jib Crane an easy tool to install and use, but it is also incredibly durable, made from high-quality materials that provide the crane with excellent strength and reliability. The crane is built to last and can withstand heavy usage, ensuring a long-lasting and reliable piece of equipment for your workplace.
The Wall Mounted Jib Crane is also versatile, customizable, and designed to fit the specific needs of your workplace. This means that you can customize the crane according to your specific lifting requirements, whether it is adjusting the height of the crane for optimal reach or adding more features as your needs evolve.
Wall Mounted Jib Crane Advantages
1.Convenient installation
2. Small occupied space
3. Top quality long time bearing polyurethane materials buffer
4. Crane traveling limit switch
5. Voltage lower protection function
6. Emergency stop system
7. Current overload protection system and so on
Wall Mounted Jib Crane Parameters
| Rated Capacity | t | 0.5 | 1 | 2 | 3 | 5 | 10 |
| Beam length | mm | 2000~6000 | |||||
| Lifting height | mm | 2000~6000 | |||||
| Lifting speed | m/min | 8; 8/0.8 | |||||
| Travelling speed | m/min | 10; 20 | |||||
| Turning speed | r/min | 0.76 | 0.69 | 0.6 | 0.53 | 0.48 | 0.46 |
| Turning degree | degree | 360° | |||||
| Duty Class | A3 | ||||||
| Power source | 380V, 50HZ, 3 phase (or other standard) | ||||||
| Working temperature | -20~42°C | ||||||
| Control model | Pendant pushbutton control or remote control | ||||||

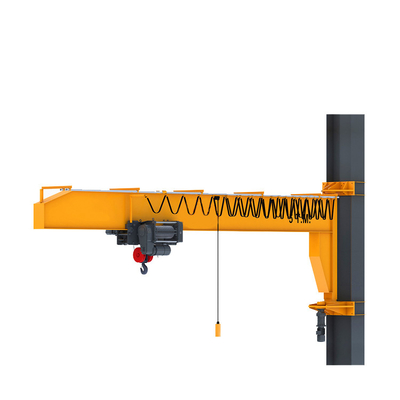

Wall Mounted Jib Crane Drawings and Details
Wall Mounted Jib Crane Safety System
Package & Delivery
FAQ
Q1. Do you have any MOQ limit ?
A: Low MOQ, 1 set for sample checking is available
Q2. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.
Q3. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q4. What is your terms of delivery?
A: EXW, FOB, CFR, CIF
