Product Details:
|
| Product Name: | Double Girder Electric Gantry Crane | Span: | 3~40m |
|---|---|---|---|
| Cantilever Length: | 0-15m | Rated Lifting Moment: | 550KN |
| Lifting Speed: | 5-15M/MIN | Color: | Customized |
| Control Method: | Cabin Control/wire Rope Remote Control | Power Supply: | 3 Phase 380V 50hz Or Request |
| Work Duty: | A5~A7 | Control: | Remote , Pendant Line , Cabin |
| High Light: | Double Girder Electric Gantry Crane,10Ton Electric Gantry Crane,40m Electric Box Type Gantry Crane |
||

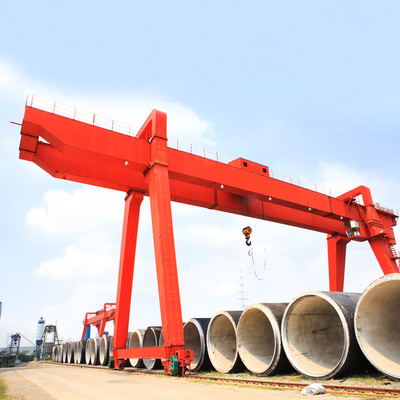

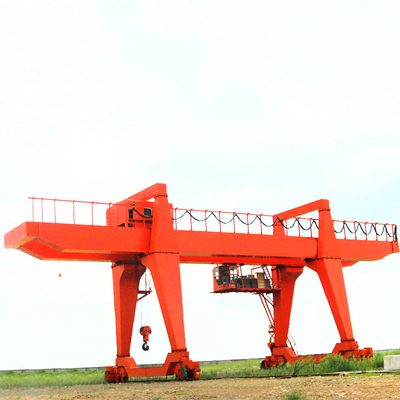

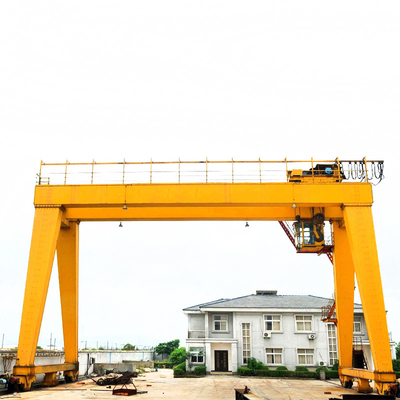

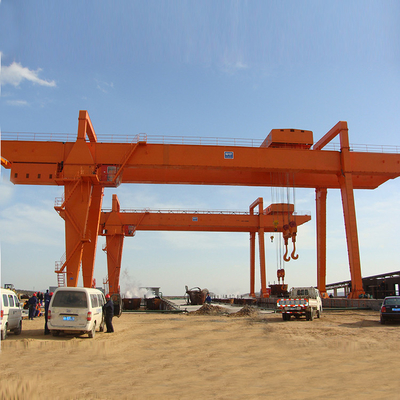

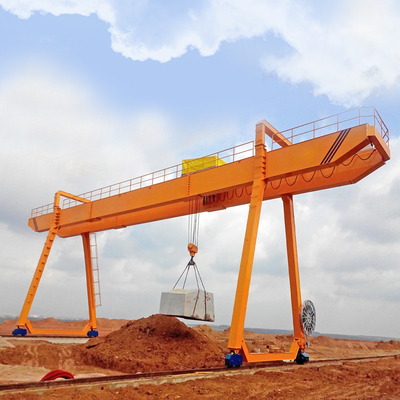

Industrial Use Box Type 10 Ton Double Girder Electric Gantry Crane
Double Girder Electric Gantry Crane Description
Double girder electric gantry crane is a type of heavy-duty overhead crane used in various industries for lifting and moving heavy loads. The main components of this crane include two parallel girders, a trolley, a hoist mechanism, and electrical control systems. Double girder gantry cranes offer higher load capacities and better hook height compared to single girder designs.
Double Girder Electric Gantry Crane Parameters
Key Features
Double Girders: The crane features two parallel girders that provide the structure and support for the trolley and hoist. This design allows for greater load capacities and better stability compared to single girder gantry cranes.
Trolley: The trolley moves along the double girders and is responsible for horizontal motion. It carries the hoist and load, allowing for precise positioning.
Hoist Mechanism: The hoist is the key lifting component of the crane and can be electrically powered or manually operated. It is attached to the trolley and provides vertical lifting and lowering of the load.
Electrical Control System: The electrical control system is responsible for the operation of the crane, including the movement of the trolley and hoist. It may include a control pendant or remote control for easy and safe operation from a distance.
End Carriages: The double girders are supported by end carriages, which move along rails on the ground. These carriages may be powered by electrical motors or manually pushed.
Applications
Double girder electric gantry cranes are used in various industries such as:
Product Schematic drawing
Benefits
Higher Load Capacities: Double girder gantry cranes can handle heavier loads compared to single girder designs, making them suitable for more demanding applications.
Greater Hook Height: The double girder design allows for a higher hook height, providing additional clearance for lifting taller loads.
Increased Stability: The two parallel girders provide better stability and balance, reducing the risk of accidents and damage to the load.
Versatility: Double girder electric gantry cranes can be customized with various options, such as different hoist types, trolley designs, and control systems, to meet specific application requirements.
Improved Safety: The electrical control system and remote operation capabilities help improve safety by allowing the operator to control the crane from a safe distance, reducing the risk of accidents.
Our Service
Inquiry notice ! ! !
If you want to inquire about our gantry crane, please confirm with us the details as below. Then we will quote you a suitable price more quickly.
1. Lift capacity?
2. Span?
3. Lift height?
4. Power supply in your local?
5. Nearest port?
6. What kind of goods will this crane lift?
