Product Details:
|
| Product Name: | 180 Degree Rotating Jib Crane | Slewing Degree: | 0~360° |
|---|---|---|---|
| Application: | Widely | Power Supply: | 3-Phase 380V 50HZ |
| Warranty: | 3 Years | Color: | Customized |
| Control Mode: | Pendent Wire Control Or Remote Control | Lifting Speed: | 0.5m/s |

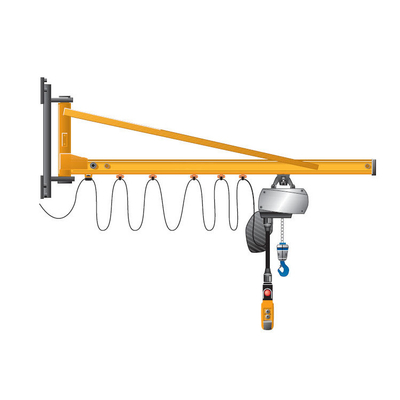

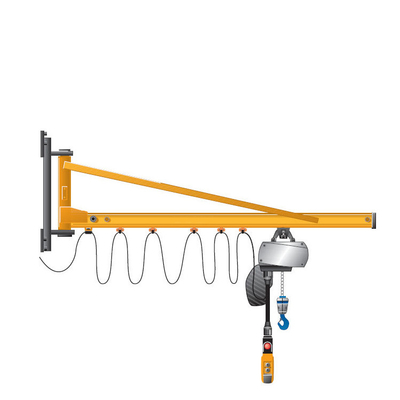

Widely Used 180 Degree Rotating Jib Crane With Remote Control
Jib Crane is an essential piece of equipment for lifting and transferring heavy materials in industrial and commercial settings. Our high quality electric hoist jib crane is designed for A3/A4 working class, and it is available in customized colors. This slewing jib crane provides 180 degree rotating and features reliable pendent wire control or remote control. What's more, we offer 3 year warranty for our jib crane.
Wall Mounted Jib Crane Parameters
| Rated Capacity | t | 0.5 | 1 | 2 | 3 | 5 | 10 |
| Beam length | mm | 2000~6000 | |||||
| Lifting height | mm | 2000~6000 | |||||
| Lifting speed | m/min | 8; 8/0.8 | |||||
| Travelling speed | m/min | 10; 20 | |||||
| Turning speed | r/min | 0.76 | 0.69 | 0.6 | 0.53 | 0.48 | 0.46 |
| Turning degree | degree | 360° | |||||
| Duty Class | A3 | ||||||
| Power source | 380V, 50HZ, 3 phase (or other standard) | ||||||
| Working temperature | -20~42°C | ||||||
| Control model | Pendant pushbutton control or remote control | ||||||

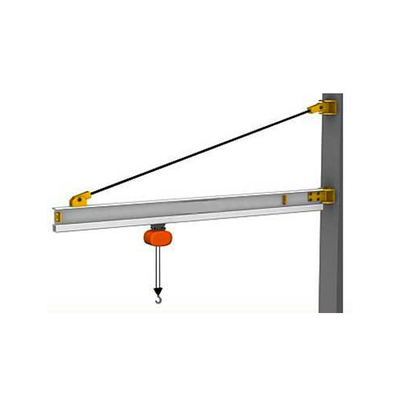

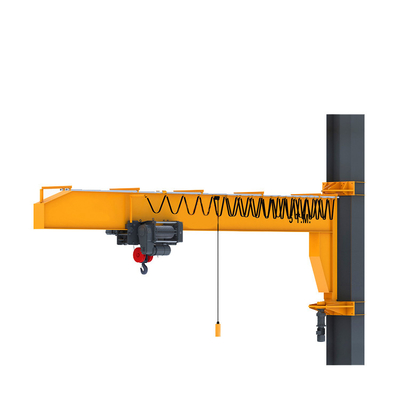

Wall Mounted Jib Crane Drawings and Details
Our Dowell Crane 180 Degree Rotating Jib Crane with Chain Hoist is a special type of slewing jib crane with high efficiency and reliable performance. It can rotate up to 180 degree and has a trolley speed of 2m/min. It is suitable for any type of environment and can work in a span of 3m. It is a new product with SGS IOS CE certification. Its minimum order quantity is 1 set and it can be purchased at a price range of 1000-20000$/1 set. It is packed in high quality plywood crates and beams packed by plastic woven cloth. Delivery is within 20 days and payment options include L/C and T/T. The supply ability is 20000 set per year.
Our Jib Crane is designed for superior durability and performance, and our expert technical support and service is here to help you get the most out of your equipment.
We provide a wide range of services to ensure our customers receive the best possible service from our Jib Crane. We offer:
For more information about our technical support and service for Jib Crane, please feel free to contact us.
The Jib Crane is packaged and shipped in the following manner:
