Product Details:
|
| Name: | Electric Transfer Cart | Running Direction: | Straight/Turning/Sideway |
|---|---|---|---|
| Speed: | 15-30m/min | Control Mode: | Remote Control |
| Running Distance: | 50m-1000m | Rail Type: | P24-QU100 |
| Color: | Customized | Brake: | Electric Motor Brake |

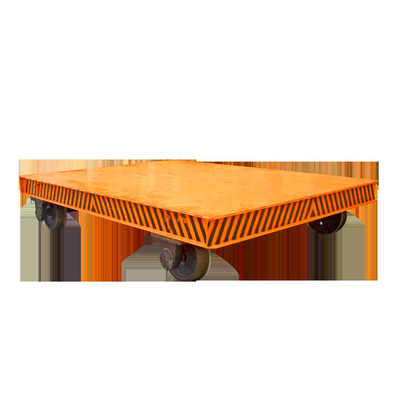

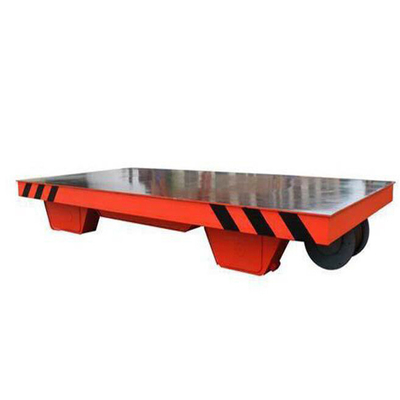

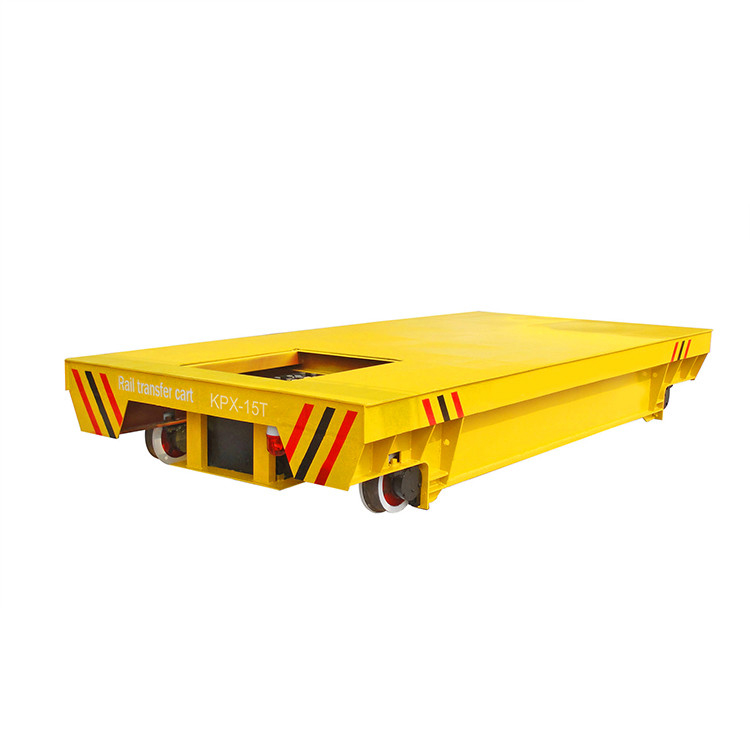

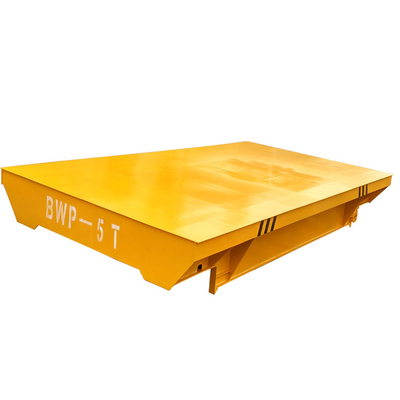

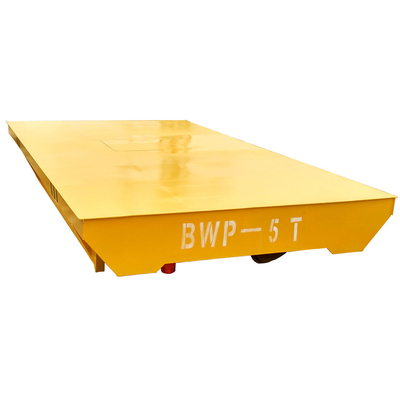

Electric Transfer Cart 3t-50t Load Capacity With Brake Control
Electric transfer cart is a type of transfer cart machine that runs on rails with electric power source. It is equipped with an electric motor brake that ensures the safety of the materials and personnel during transportation. It can travel straight, turn and move sideways with a distance range from 50m to 1000m.
The electric transfer cart has a rigid construction and excellent performance. It can be used to transfer heavy loads in a variety of industrial applications, such as factories, warehouses, workshops, etc. It is reliable, durable and easy to maintain. It is also energy efficient and cost effective.
The electric transfer cart is a reliable and efficient solution for material handling needs. It is a great choice for factories, warehouses, and workshops that need to move heavy loads over long distances. With its electric power source, electric motor brake, and ability to travel straight, turn, and move sideways, the electric transfer cart is a great way to transport materials safely and efficiently.
|
Modle
|
KPD-10T
|
KPD-30T
|
KPD-50T
|
KPD-80T
|
KPD-100T
|
KPD-150T
|
|
Table Size (m)
|
3.6*2.0*0.5
|
4.5*2.2*0.6
|
5.5*2.5*0.65
|
6.0*2.6*0.8
|
6.5*2.8*0.85
|
10*3.0*1.2
|
|
Power
|
Low Voltage Rail Power
|
|||||
|
Rail inner Gauge
|
1435mm
|
1435mm
|
1435mm
|
1800mm
|
2000mm
|
2000mm
|
|
Wheel Dia.
|
300mm
|
400mm
|
500mm
|
600mm
|
600mm
|
600mm
|
|
Running Speed
|
25m/min
|
20m/min
|
20m/min
|
20m/min
|
20m/min
|
20m/min
|
|
Motor Power
|
1.6kw
|
3.5kw
|
5kw
|
7.5kw
|
11kw
|
15kw
|
|
Max Wheel Load
|
42.6Kn
|
110.4Kn
|
174Kn
|
278.4Kn
|
343.8Kn
|
265.2Kn
|
|
Reference weight
|
4.2t
|
6.8t
|
8t
|
12.8t
|
14.6t
|
26.8t
|
|
Recommend Rail
|
P18
|
P38
|
P43
|
P50
|
QU100
|
QU100
|
Brand Name: Dowell Crane
Model Number: KPC KPDS KPDZ KPJ KPT KPX
Place of Origin: China (Mainland)
Certification: IOS CE
Minimum Order Quantity: 1 Set
Price: USD 2000-10000 /Set
Packaging Details: Electric parts are packed by strong plywood crate,others packaged in polythene woven cloth.
Delivery Time: 20 days
Payment Terms: L/C, T/T
Supply Ability: 2000 Set/Sets per Month
Color: Customized
Running Direction: Straight/Turning/Sideway
Warranty: 3 Year
Rail type: P24-QU100
Load Capacity: 3t-50t
Q1: What is the brand name of the Electric Transfer Cart?
A1: The brand name of the Electric Transfer Cart is Dowell Crane.
Q2: What is the model number of the Electric Transfer Cart?
A2: The model number of the Electric Transfer Cart is KPC KPDS KPDZ KPJ KPT KPX.
Q3: Where is the Electric Transfer Cart made?
A3: The Electric Transfer Cart is made in China (Mainland).
Q4: What is the minimum order quantity of the Electric Transfer Cart?
A4: The minimum order quantity of the Electric Transfer Cart is 1 Set.
Q5: What certifications does the Electric Transfer Cart have?
A5: The Electric Transfer Cart has IOS CE certifications.
