Product Details:
|
| Name: | Electric Transfer Cart | Load Capacity: | 3t-50t |
|---|---|---|---|
| Speed: | 15-30m/min | Power Source: | Electric |
| Warranty: | 3 Year | Brake: | Electric Motor Brake |
| Rail Type: | P24-QU100 | Control Mode: | Remote Control |

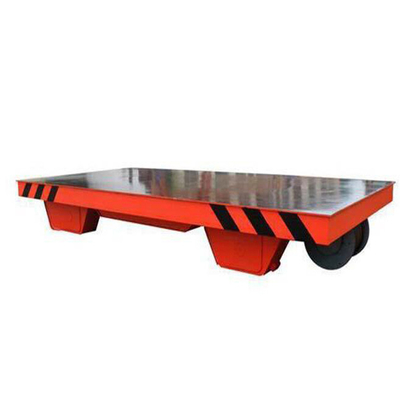

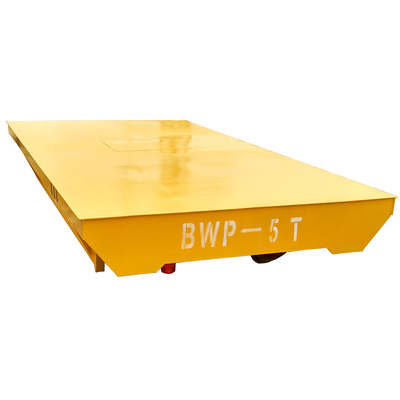

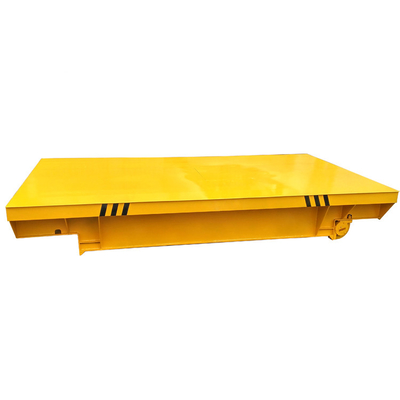

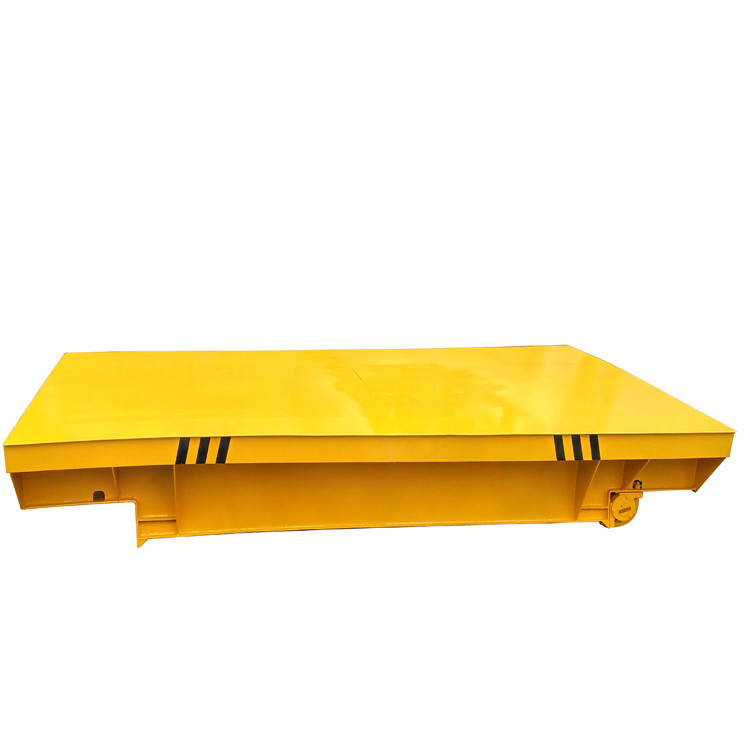

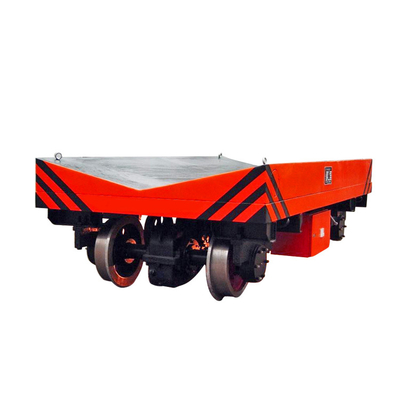

Low Noise Manufacturing Electric Transfer Cart For Factory Use
Electric Transfer Cart is a special transfer cart machine designed for foundry industry. This cart works with electric power source and runs straight, turning, or sideway with a speed from 15m/min to 30m/min. It has four wheels and can be customized in different colors. The rail type of this transfer cart is P24-QU100.
This electrical transfer cart with wheels is widely used in foundry industry for transport and transfer tasks. Besides providing convenient transfer service, this electric transfer cart is also designed to be safe and reliable for long-term use. It has advanced safety features and is constructed with high-quality materials to ensure optimal performance throughout its lifetime.
If you are looking for a reliable transfer cart for your foundry industry, our electric transfer cart is definitely the right choice for you. Contact us today to get more information about this transfer cart machine.
|
Modle
|
KPD-10T
|
KPD-30T
|
KPD-50T
|
KPD-80T
|
KPD-100T
|
KPD-150T
|
|
Table Size (m)
|
3.6*2.0*0.5
|
4.5*2.2*0.6
|
5.5*2.5*0.65
|
6.0*2.6*0.8
|
6.5*2.8*0.85
|
10*3.0*1.2
|
|
Power
|
Low Voltage Rail Power
|
|||||
|
Rail inner Gauge
|
1435mm
|
1435mm
|
1435mm
|
1800mm
|
2000mm
|
2000mm
|
|
Wheel Dia.
|
300mm
|
400mm
|
500mm
|
600mm
|
600mm
|
600mm
|
|
Running Speed
|
25m/min
|
20m/min
|
20m/min
|
20m/min
|
20m/min
|
20m/min
|
|
Motor Power
|
1.6kw
|
3.5kw
|
5kw
|
7.5kw
|
11kw
|
15kw
|
|
Max Wheel Load
|
42.6Kn
|
110.4Kn
|
174Kn
|
278.4Kn
|
343.8Kn
|
265.2Kn
|
|
Reference weight
|
4.2t
|
6.8t
|
8t
|
12.8t
|
14.6t
|
26.8t
|
|
Recommend Rail
|
P18
|
P38
|
P43
|
P50
|
QU100
|
QU100
|
The Electric Transfer Cart made by Dowell Crane is an ideal solution for transportation of heavy materials in various industries like foundry, steel factories, power plants, etc. It features a wide range of models with different load capacity, from 3t to 50t, and can run in straight, turning and sideway directions. It is equipped with electric motor brake to guarantee a high safety level.
Dowell Crane's Electric Transfer Cart is certified by IOS CE, and comes with 3-year warranty. The packing of electric parts is strong plywood crate, and all the others are packaged in polythene woven cloth. With competitive price range from USD 2000-10000/Set, and outstanding quality, you can expect fast delivery time of 20 days and reliable supply ability of 2000 Sets per Month. Payment terms are flexible with both L/C and T/T.
We provide professional technical support and service for Electric Transfer Cart. Our quality technical team are available to answer your questions and provide you with the following services:
If you have any questions or need any assistance, please don't hesitate to contact us.
For electric transfer cart, the product is packaged for safe storage and shipment. The parts are packaged separately and then assembled on-site. Depending on the size of the product, it can be stacked onto pallets and shipped by truck or air freight. The goods are then delivered to the customer's appointed address.
For the protection of the goods during transport, the product is wrapped with a protective film, and then packed into a sturdy carton box. The carton box is then palletized and secured with stretch wrap and strapping materials.
Finally, the goods are ready to be shipped according to the customer’s desired shipping method.
