Product Details:
|
| Product Name: | Jib Crane | Control Mode: | Pendent Wire Control Or Remote Control |
|---|---|---|---|
| Power Supply: | 3-Phase 380V 50HZ | Condition: | New |
| Warranty: | 3 Years | Working Class: | A3/A4 |
| Color: | Customized | Slewing Degree: | 0~360° |
High Quality Lifting 360 Degree Rotating Jib Crane With Adjustable Arm
Jib Crane is a kind of slewing jib crane with chain hoist. It has powerful lifting capacity and wide applications in industrial and commercial environment. It is designed to meet the highest safety standards and has excellent performance features. With its trolley speed of 2m/min, working temperature of -20℃~40℃, working class of A3/A4, lifting speed of 0.5m/s and slewing degree of 0~360°, Jib Crane is an ideal lifting equipment for various occasions.
Jib Crane is a reliable and cost-effective solution for lifting and transporting heavy items. It is designed with advanced technology to ensure safety and efficiency. With its rotatable arm, it is able to reach places where the traditional hoist cannot reach. The jib crane is also designed with an adjustable height, which can be adjusted to suit different working needs. Moreover, it is equipped with a safety brake system to ensure the stability of the crane and protect the items from being damaged.
Jib Crane is a powerful and efficient lifting equipment that can help improve productivity and efficiency in various industries. It is designed with high-quality materials, which makes it durable and long-lasting. With its excellent features and performance, Jib Crane is an ideal choice for any lifting and transporting operations.
| BZ Type arm crane jib | 0.25t | 0.5t | 1t | 2t | 5t | |||||||||
| Lifting height | m | 5 | 5.5 | 6 | 5 | 5.5 | 6 | 4 | 4.5 | 5 | 4.5 | 5 | 4.5 | 5 |
| effective radius | m | 4 | 4.5 | 5 | 4 | 4.5 | 5 | 4 | 4.5 | 5 | 5 | 5.5 | 5 | 5.5 |
| Lifting speed | m/min | 8 | 8 | 8 | 8 | 8 | ||||||||
| Rotating speed | r/min | 0.7 | 0.7 | 0.7 | 0.5~1 | 0.5~1 | ||||||||
| Travelling speed | m/min | 20 | 20 | 20 | 20 | 20 | ||||||||
| rotation angel | ° | 180°,270°,360°,arbitrarily | 180°,270°,360°,arbitrarily | 180°,270°,360°,arbitrarily | 180°,270°,360°,arbitrarily | 180°,270°,360°,arbitrarily | ||||||||
| Crane body height | m | 5.93 | 6.43 | 6.93 | 5.987 | 6.487 | 6.987 | 5.28 | 6.78 | 6.28 | 6.254 | 6.754 | 6.522 | 7.022 |
| Max lenth | m | 4.59 | 5.09 | 5.59 | 4.61 | 5.11 | 5.61 | 4.626 | 5.126 | 5.626 | 6.32 | 6.82 | 5.94 | 6.44 |
| Self Weight | kg | 1733 | 1933 | 2028 | 1860 | 1960 | 2229 | 2478 | 2613 | 2748 | 3577 | 3742 | 4224 | 4430 |

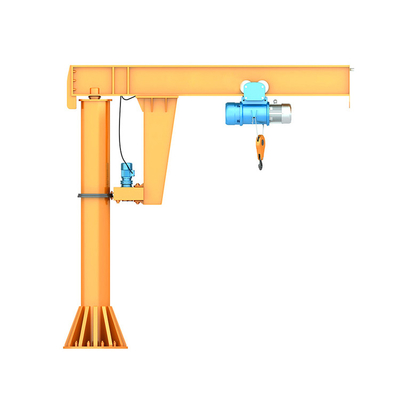

Jib Crane Drawings:
Dowell Crane BZ Floor Mounted Jib Crane is a reliable and durable material handling solution for any industrial or commercial application. It is certified by SGS and IOS and CE, and offers an excellent return on investment. It is designed with a 3-Phase 380V 50HZ power supply and can be controlled through pendent wire control or remote control.
The jib crane has a span of 3m, and is capable of lifting loads up to 2000kg. Its minimal order quantity is 1 set, and it is available at a price ranging from 1000 to 20000 USD per set. It comes with a 3-year warranty, and is packed by high quality plywood crate and beams packed by plastic woven cloth for secure and safe delivery. It has a 20000 sets per year supply ability, and its delivery time is 20 days. It accepts payment terms such as L/C and T/T.
Dowell Crane BZ Floor Mounted Jib Crane is a reliable and efficient material handling solution for any industrial or commercial application. It is designed with the highest quality standards and is certified by SGS, IOS and CE. It is available for an affordable price and comes with a 3-year warranty.
We are pleased to provide technical support and service for all of our Jib Crane products. Our team of experienced technicians are available to answer your questions and provide assistance with any issues you may be having.
We offer telephone support, online support, and on-site technical assistance. Our knowledgeable technicians can help you troubleshoot any problems and provide advice on how to best use and maintain your Jib Crane.
We also offer a range of preventative maintenance services to ensure your Jib Crane is running at its peak performance. Our technicians are trained in the latest technology and can provide you with up-to-date information on the most efficient ways to operate your equipment.
If you have any questions or concerns about your Jib Crane, please don't hesitate to contact us. We are here to help and provide you with the best possible service.
The Jib Crane will be securely packaged and shipped in a wooden crate. The crate will include all necessary materials such as foam, bubble wrap and other protective materials to ensure safe delivery of the product.
The dimensions of the wooden crate are: Length: xx cm, Width: xx cm, Height: xx cm.
The product will be shipped via a reputable courier service to ensure safe delivery.
