Product Details:
|
| Product Name: | Overload Protection Device/Limit Switch | Lifting Capacity: | 0.5T~30T |
|---|---|---|---|
| Lifting Height: | 6-30m | Ambient Temperature: | -20℃~+40℃ |
| Color: | Customized | Control Method: | Remote Control |
| Usage: | Construction Hoist, Mining Hoist, Material Handling, Portable, Household | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Maintenance And Repair Service,Free Spare Parts |

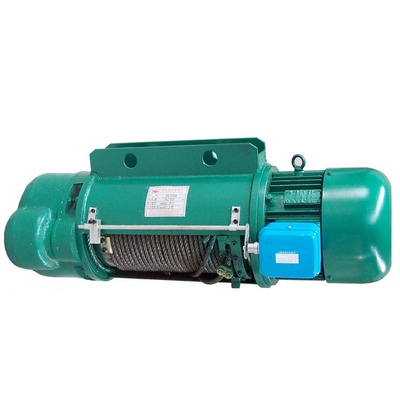

High Speed Overhead Crane Using CD MD Type Electric Hoist In Workshop
Electric Hoist is a high-speed electric hoist specially designed for crane use. It has a wide range of lifting capacity ranging from 0.5T to 30T, providing users with reliable and efficient lifting solutions. For safety reasons, it is equipped with an overload protection device and limit switch, which can effectively prevent the hoist from overloading and causing unnecessary damage. Besides, it has a lifting speed of 0.8/8M/Min, which can meet the requirements of different lifting occasions. In addition, it can also be used in harsh working environment with ambient temperature range of -20℃~+40℃. The color can be customized to meet the needs of different customers. Electric Hoist is the ideal choice for crane use with its high speed, reliable and secure features.
|
Very Popular Vertical Lifting Wire Rope Electric Cable Hoist Winch
|
||||||||
|
Model
|
CD/MD
0.25t
|
CD/MD
0.5t
|
CD/MD
1t
|
CD/MD
2t
|
CD/MD
3t
|
CD/MD
4t
|
CD/MD
5t
|
|
|
Lifting Weight
|
0.25
|
0.5
|
1
|
2
|
3
|
5
|
10
|
|
|
Lifting Height(m)
|
3-9
|
6-12
|
6-30
|
6-30
|
6-30
|
6-30
|
6-30
|
|
|
Lifting Speed(m/min)
|
8(8/0.8)
|
8(8/0.8)
|
8(8/0.8)
|
8(8/0.8)
|
8(8/0.8)
|
8(8/0.8)
|
7(7/0.7)
|
|
|
Running Speed
|
20(30) m/min
|
|||||||
|
Wire Rope Model
|
6×19-3.6
|
6×37-4.8-180
|
6×37-7.4-180
|
6×37-11-155
|
6×37-13-170
|
6×37-15-200
|
6×37-15-200
|
|
|
I-beam Track Model
|
16-22b
|
16-28b
|
16-28b
|
20a-32c
|
20a-32c
|
25a-63c
|
28a-63c
|
|
|
Minimum radius of circular orbit(m)
|
0.8
|
1.5
|
1.5-4
|
2-4
|
2-4
|
2.5-5
|
3.5-9
|
|
|
Lifting Motor
|
Motor
|
ZD12-4
|
ZD21-4
|
ZD22-4
|
ZD31-4
|
ZD41-4
|
ZD41-4
|
ZD51-4
|
|
ZDS0.2/1.5
|
ZDS0.2/1.5
|
ZDS0.4/3
|
ZDS0.4/4.5
|
ZDS0.8/7.5
|
ZDS1.5/13
|
|||
|
Capacity
|
0.4
|
0.8 0.2/0.8
|
1.5 0.2/1.5
|
3 0.4/3
|
4.5 0.4/4.5
|
7.5 0.8/7.5
|
13 1.5/13
|
|
|
rotation rate
|
1380
|
1380
|
1380
|
1380
|
1380
|
1400
|
1400
|
|
|
Power supply
|
3P 380V 50HZ
|
|||||||
The Dowell Crane electric hoist, model CD MD, is a high-quality product with a variety of applications. It is designed for use in cranes, and its wireless remote control hoist feature allows for easy and efficient operation. With a lifting capacity ranging from 0.5T to 30T and a lifting speed from 0.8/8M/Min, this electric hoist is ideal for a wide range of tasks. The product is manufactured in China and meets CE and ISO standards. It is also designed with an overload protection device and a limit switch for added safety. Additionally, it can be customized to meet the needs of a variety of tasks and environments, with an operational ambient temperature range of -20℃ to 40℃. The product is available in a variety of packaging options, including electric hoist, motor packed by water-proof film, and spare parts packed by high quality plywood box. The minimum order quantity is one set and the price range is from US$350.00 to US$6,450.00. Delivery time is usually 15 days, and payment terms can be L/C, T/T, or Western Union. The supply ability is 200 sets per month.
We provide technical support and service for Electric Hoist products.
We provide comprehensive product service to ensure the best possible performance of your Electric Hoist. Our services include:
In addition to product service, we offer a range of support resources to ensure your Electric Hoist is running optimally. Our resources include:
We provide a warranty for all Electric Hoist products. The warranty covers any defects in materials or workmanship and provides coverage for repair and replacement services.
Electric Hoist Packaging and Shipping:
