Product Details:
|
| Product Name: | Double Girder Gantry Crane | Span: | 3~40m |
|---|---|---|---|
| Warranty: | 2 Year | Cantilever Length: | 0-15m |
| Lifting Speed: | 5-15M/MIN | Control Method: | Cabin Control/wire Rope Remote Control |
| Control: | Remote, Pendant Line, Cabin | Work Duty: | A5~A7 |

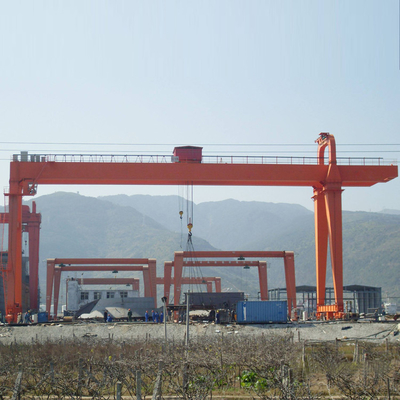

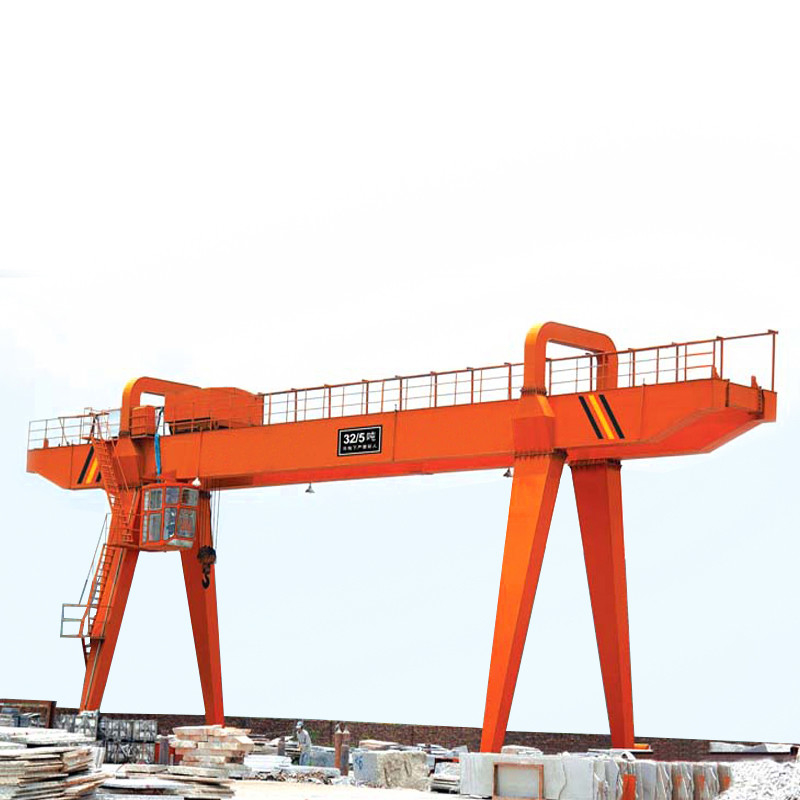

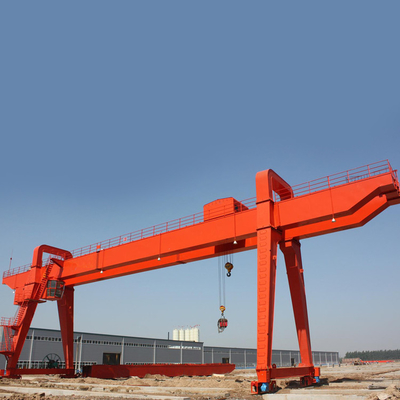

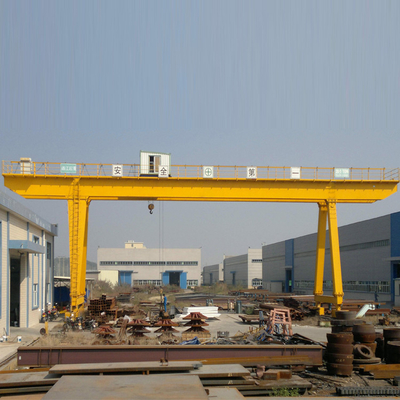

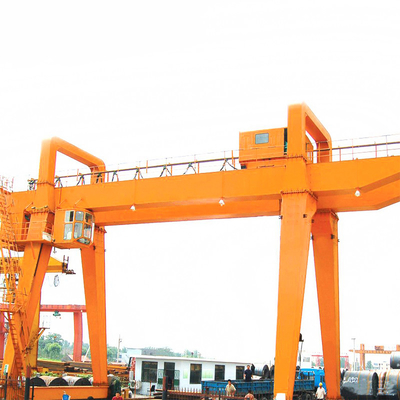

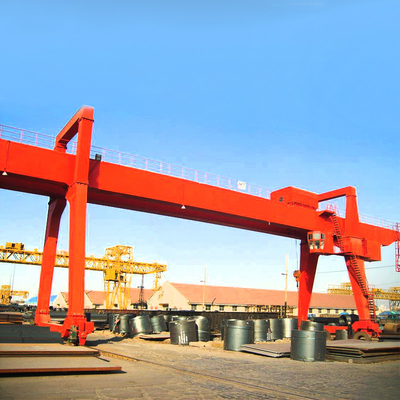

10 Ton 20 Ton Outdoor Use Lifting Machine Double Girder Gantry Crane
Gantry Crane is a type of equipment used in a variety of industries for lifting and moving heavy objects. This box type gantry crane with trolley is powered by electricity and comes with a 2-year warranty. It is capable of lifting up to 550KN and has a lifting speed of 5-15M/MIN, perfect for intensive industrial applications. Furthermore, the gantry crane can be controlled either by a cabin control or by a wire rope remote control, allowing for a smooth and safe operation.
|
Item
|
Unit | Result |
| Lifting capacity | ton | 5-320ton |
| lifting height | H(m) | 3-30m |
| Span | m | 18-35m |
| lifting speed | m/min | 5.9-16.7 |
| trolley speed | m/min | 34-44.6 |
| Working grade | A5 | |
| Working environment temperture | °C | -20~40 |
| power source | three-phase 380V 50HZ | |
| Control mode | cabin control/remote control |
Dowell Crane's box frame gantry crane is an electric trolley Gantry Crane that is made in China (Mainland). It is certified by ISO CE BV CCC GOST SGS and the model number is MH. The minimum order quantity is 1 Set, and the price is from USD 23000-100000 SET. The delivery time is 35 work days and the payment terms are L/C, T/T, Western Union. The supply ability is 5000 Sets per Year and the rated lifting moment is 550KN. The power source is Electric and the control is Remote, Pendant Line, Cabin. It can be operated through Cabin Control/wire Rope Remote Control and the span is 3~40m. The main body is packaged by high quality water-proof plastic woven cloths and the spare parts are packed in high quality plywood box.
Gantry cranes are used in a variety of industrial applications, ranging from manufacturing to construction. To ensure that these cranes are in top condition and reliable, proper technical support and services are required.
Our technical support team is available 24/7 to assist you with any technical queries you may have regarding Gantry Cranes. Our team is experienced in all aspects of Gantry Crane maintenance and operation, and can provide you with the best advice on how to keep your crane in top condition.
We offer a range of services to ensure that your Gantry Crane is in top condition and ready for use. Our services include:
Our team is highly experienced and qualified in all aspects of Gantry Crane operations and maintenance, and can provide you with the best advice on how to keep your crane in top condition.
Packaging and Shipping for Gantry Crane:
The Gantry Crane is shipped with all components securely packaged in a wooden crate. The crate is reinforced with steel straps to ensure that the crane is secure during transport. The crane is also equipped with a lifting hook, which can be used to unload the crane from the shipping vehicle. After unloading, all components are inspected for damage and any missing parts are replaced before assembly.
