Product Details:
|
| Product Name: | Electric Hoist | Lifting Capacity: | 0.5T~30T |
|---|---|---|---|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Maintenance And Repair Service,Free Spare Parts | Usage: | Construction Hoist, Mining Hoist, Material Handling, Portable, Household |
| Control Method: | Remote Control | Color: | Customized |
| Safety Device: | Overload Protection Device/Limit Switch | Lifting Height: | 6-30m |

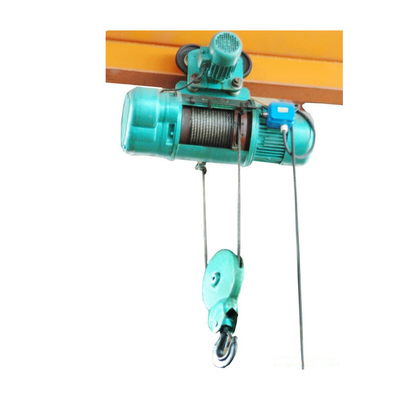

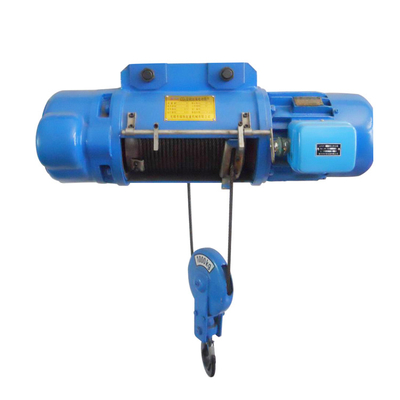

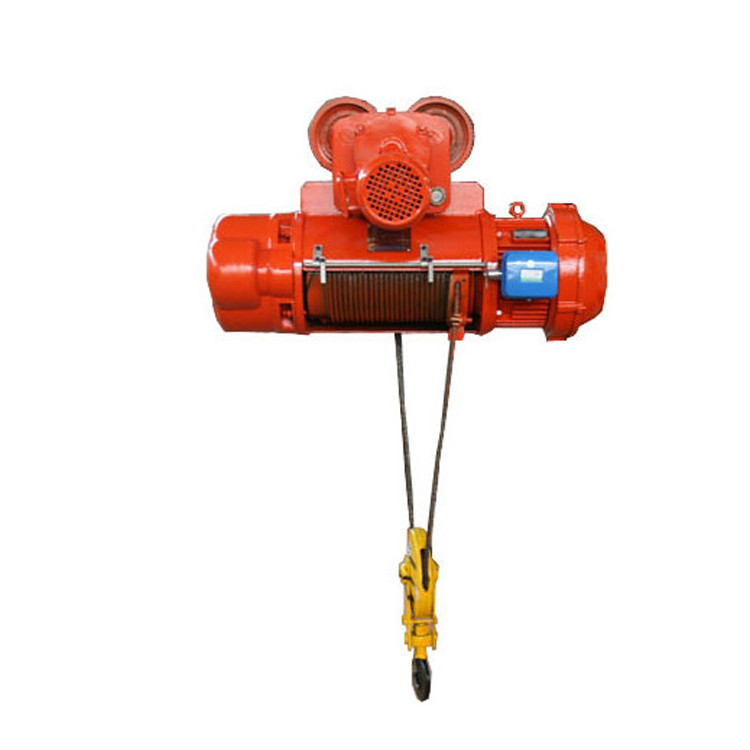

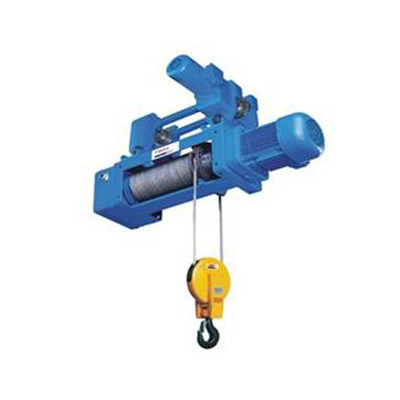

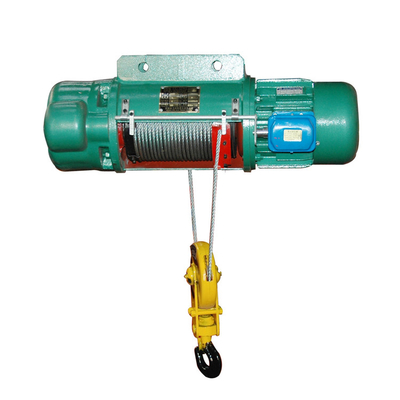

Heavy Duty Construction Lifting Electric Hoist 0.5T-30T With Wire Rope
Our remote controlled Electric Hoist is the ideal choice for lifting, lowering, and transporting heavy loads in a variety of environments. This high quality electric hoist is equipped with wireless remote control, making it easy to use and suitable for any application. The electric hoist is designed with a lifting speed of 0.8/8M/Min, lifting capacity of 0.5T~30T, ambient temperature of -20℃~+40℃, and lifting height of 6-30m. It also provides safety features such as an overload protection device and limit switch. Our remote controlled Electric Hoist is reliable, efficient, and can be used in a wide range of environments. It is the perfect solution for any lifting job, and can be used for a variety of tasks, such as construction, manufacturing, and maintenance.
|
Very Popular Vertical Lifting Wire Rope Electric Cable Hoist Winch
|
||||||||
|
Model
|
CD/MD
0.25t
|
CD/MD
0.5t
|
CD/MD
1t
|
CD/MD
2t
|
CD/MD
3t
|
CD/MD
4t
|
CD/MD
5t
|
|
|
Lifting Weight
|
0.25
|
0.5
|
1
|
2
|
3
|
5
|
10
|
|
|
Lifting Height(m)
|
3-9
|
6-12
|
6-30
|
6-30
|
6-30
|
6-30
|
6-30
|
|
|
Lifting Speed(m/min)
|
8(8/0.8)
|
8(8/0.8)
|
8(8/0.8)
|
8(8/0.8)
|
8(8/0.8)
|
8(8/0.8)
|
7(7/0.7)
|
|
|
Running Speed
|
20(30) m/min
|
|||||||
|
Wire Rope Model
|
6×19-3.6
|
6×37-4.8-180
|
6×37-7.4-180
|
6×37-11-155
|
6×37-13-170
|
6×37-15-200
|
6×37-15-200
|
|
|
I-beam Track Model
|
16-22b
|
16-28b
|
16-28b
|
20a-32c
|
20a-32c
|
25a-63c
|
28a-63c
|
|
|
Minimum radius of circular orbit(m)
|
0.8
|
1.5
|
1.5-4
|
2-4
|
2-4
|
2.5-5
|
3.5-9
|
|
|
Lifting Motor
|
Motor
|
ZD12-4
|
ZD21-4
|
ZD22-4
|
ZD31-4
|
ZD41-4
|
ZD41-4
|
ZD51-4
|
|
ZDS0.2/1.5
|
ZDS0.2/1.5
|
ZDS0.4/3
|
ZDS0.4/4.5
|
ZDS0.8/7.5
|
ZDS1.5/13
|
|||
|
Capacity
|
0.4
|
0.8 0.2/0.8
|
1.5 0.2/1.5
|
3 0.4/3
|
4.5 0.4/4.5
|
7.5 0.8/7.5
|
13 1.5/13
|
|
|
rotation rate
|
1380
|
1380
|
1380
|
1380
|
1380
|
1400
|
1400
|
|
|
Power supply
|
3P 380V 50HZ
|
|||||||
Dowell Crane is a leading brand in the production of Electric wire rope Hoist. The product range includes High speed Electric Hoist and Electric wire rope Hoist, with model number CD MD. Dowell Crane is certified with CE ISO, and its products are available in minimum order quantity of 1 set. The price range for the Electric Hoist is US$350.00-US$6,450.00, with packaging including electric hoist, motor packed by water-proof film, and spare parts packed by high quality plywood box. The delivery time is 15 days, while the payment terms include L/C, T/T, and Western Union. The company has a supply capacity of 200 sets per month.
Electric Hoist can be used for various applications such as construction hoist, mining hoist, material handling, portable, and household. The lifting speed is 0.8/8M/Min, and the lifting capacity ranges from 0.5T to 30T. The control method of the Electric Hoist is remote control, and the company provides after-sales service including engineers available to service machinery overseas, field maintenance and repair service, and free spare parts.
We provide reliable technical support and service for our Electric Hoist product. Our team of experienced professionals can help with installation, maintenance, and repairs. We also offer ongoing support to ensure the optimal performance of your equipment.
Our service technicians are available 24/7 to provide prompt assistance with any issue. We can diagnose problems quickly and provide accurate solutions to get your equipment back up and running. We also offer preventative maintenance services to help keep your Electric Hoist in top condition.
If you have any questions or need assistance, please do not hesitate to contact us. Our knowledgeable customer service representatives will be happy to provide you with the information you need.
Electric Hoists are usually shipped in sturdy cardboard boxes, with extra cushioning material added for extra protection. All boxes should be clearly marked with the product name, product weight, and a ‘Fragile’ warning.
When shipping Electric Hoists, they should be carefully secured to a pallet, with the hoist's weight evenly distributed. All pallets should be strapped together for added security.
When shipping Electric Hoists internationally, the customer should be advised to ensure the necessary documentation is provided to the shipping company.
