Product Details:
|
| Product Name: | Floor Mounted Jib Crane | Control Mode: | Pendent Wire Control Or Remote Control |
|---|---|---|---|
| Trolley Speed: | 2m/min | Type: | Jib Crane |
| Working Temperature: | -20℃~40℃ | Lifting Height: | 4m |
| Color: | Customized | Power Supply: | 3-Phase 380V 50HZ |
| High Light: | Rotating Floor Mounted Jib Crane,360 Degree Rotating Jib Crane,2m/min Rotating Jib Crane |
||

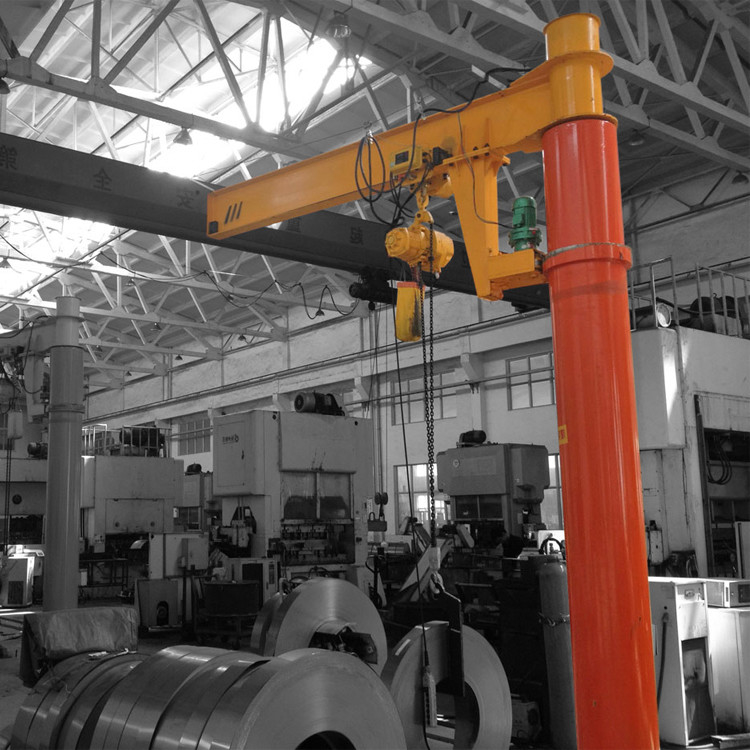

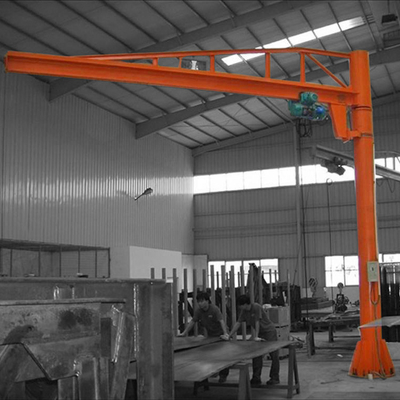

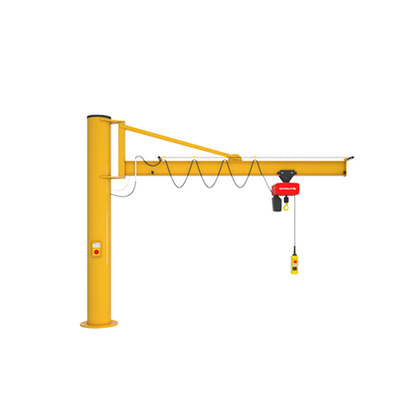

Widely Application 360 Degree Rotating Floor Mounted Jib Crane
The Floor Mounted Jib Crane is one of the most versatile pieces of lifting equipment available. With its ability to rotate both horizontally and vertically, it can be used in a wide range of applications. The Jib Crane is equipped with a chain hoist, providing safe and reliable lifting power. It is suitable for both indoor and outdoor use. The Jib Crane can be controlled with a pendant wire or remotely, allowing for greater flexibility and control. It has a lifting speed of 0.5m/s and a lifting height of 4m. This Floor Mounted Jib Crane is the perfect choice for any lifting needs.
| BZ/BZD | |||||||||
| Capacity | Tons | 0.25 | 0.5 | 2 | 5 | 10 | 13 | 16 | 20 |
| Arm length | M | Max.18m | |||||||
| Hoisting height | M | 3,6,9,12 20 | |||||||
| Hoisting speed | M/MIN | 8,8/0.8,7,7/0.7,3.5,3.5/3.5 | |||||||
| Travel speed | M/MIN | 20,30 | |||||||
| Rotating speed | M/MIN | 0.5r/min | |||||||
| Rotating degree | degree | 360 | |||||||
| Wirerope | Dia.(mm) | 3.6 | 4.8 | 7.4 | 10 | 13 | 16 | 17.5 | 22.5 |
| Spec. | 6x39 | 6x37+FC | |||||||
| Power | AC 220-690V,50/60HZ | ||||||||

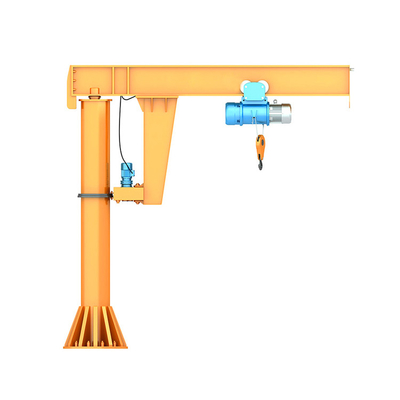

The Dowell Crane BZ Electric Hoist Jib Crane is an ideal solution for any work site that needs to lift and rotate heavy loads. With a lifting speed of 0.5m/s, a lifting height of 4m, and a power supply of 3-Phase 380V 50HZ, it is both fast and reliable. The crane is equipped with either a Pendent Wire Control or Remote Control for easy operation. It is certified with SGS IOS CE.
The BZ Electric Hoist Jib Crane is an excellent choice for any lifting and turning needs. It is available for a minimum order quantity of 1 set with prices ranging from 1000~20000$/1 set. The jib crane electrical and other parts are packed by high quality plywood crate, while Beams are packed by plastic woven cloth. Delivery time is approximately 20 days and the payment terms are L/C, T/T. The maximum Supply Ability is 20000 Sets per Year.
At Dowell Crane. we provide technical support and service for our Jib Crane products. Our team of highly trained and experienced technicians are available to answer any questions or provide assistance whenever needed.
Our service includes:
If you have any questions or need assistance, please do not hesitate to contact our technical support team. We are always happy to help.
Jib Crane Packaging and Shipping:
All Jib Cranes are packaged in durable, custom-made wooden crates, and then shipped via truck or train. The crates are built to securely hold the item in place during transit and protect it from any potential damage. Additionally, each crate is labeled clearly with the item’s model number, serial number, and destination.
