Product Details:
|
| Lifting Height: | 6-30m | Control Method: | Remote Control |
|---|---|---|---|
| Color: | Customized | Lifting Capacity: | 0.5T~30T |
| Usage: | Mining Hoist | Ambient Temperature: | -20℃~+40℃ |
| Working Duty: | A3-A5 | Travelling Speed: | 2-20m/min |

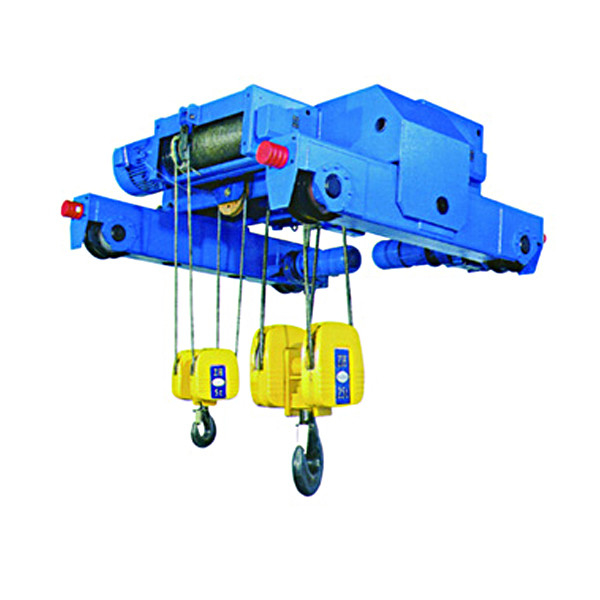

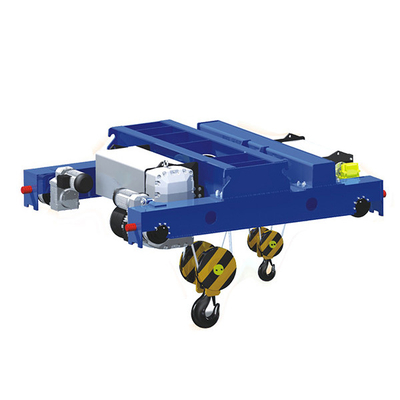

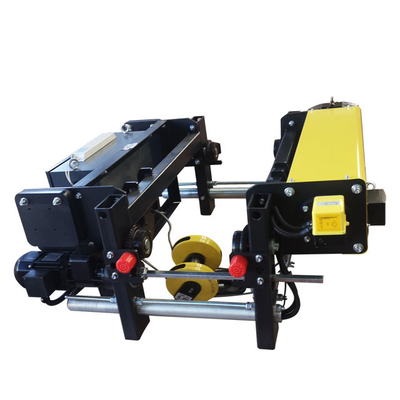

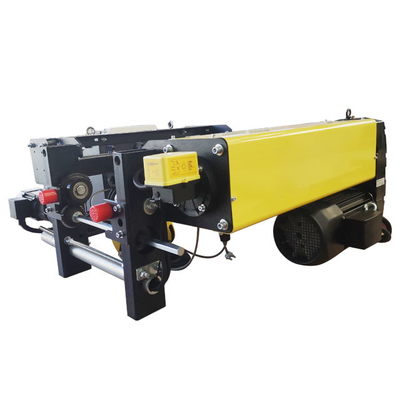

Good Price Motor Driven European Standard Hoist For Overhead Crane
The European Electric Hoist is an ideal lifting equipment for industrial and mining enterprises, workshops, warehouses, and construction sites. It is equipped with advanced remote control technology and can be operated with safety and convenience. It is characterized by high efficiency, energy saving and environmental protection. This European Electric wire rope Hoist is designed with a travelling speed range of 2-20m/min, making it suitable for various applications. It is rated with A3-A5 Working Duty and can operate under extreme ambient temperatures of -20℃~+40℃. This European Electric Hoist is a reliable and cost effective choice for heavy lifting needs.
| Working duty | M6 | |||
|---|---|---|---|---|
| Lifting height | m | 6 | 9 | 12 |
| Lifting speed | m/min | 0.66/4 | ||
| Pulley ratio | 4/1 | |||
| Traveling speed | m/min | 2~20 | ||
| Max Wheel Load | KN | 34.7 | 34.8 | 34.9 |
| Total weight | kg | 650 | 690 | 730 |
| Main dimension | mm | 6 | 9 | 12 |
| width of main beam | b | 300~450 | ||
| Lifting side width | K1 | 560 | 560 | 560 |
| Operation side width | K2 | 550 | 550 | 550 |
| Hoist length | l | 1140 | 1320 | 1500 |
| Hook superior limit | h | 700 | 700 | 700 |
Dowell Crane's European Electric Hoist is a remote control electric hoist produced in compliance with European standards. It has a wide range of applications, especially in mining hoist. It is an ideal choice for lifting heavy items and personnel in various occasions.
The European Electric Hoist is equipped with a compact motor that runs at a speed of 2-20m/min. It delivers a high-end performance and is capable of lifting items weighing up to 30T. The lifting height reaches up to 6-30m. This hoist is also available in a variety of colors to meet customer specifications.
The European Electric Hoist has obtained SGS IOS CE certification and is manufactured with the highest quality materials. It is packed in a high quality wooden box and is available at a cost-effective price of USD 1000-10000 /Set. The delivery time is 25 days and its availability is 10000 Sets per Year. It supports multiple payment methods such as L/C, T/T, and Western Union.
Dowell Crane's European Electric Hoist is designed for maximum safety and efficiency. It offers reliable and long-lasting performance and is the perfect choice for any mining hoist job.
Electric Hoist Packaging and Shipping
