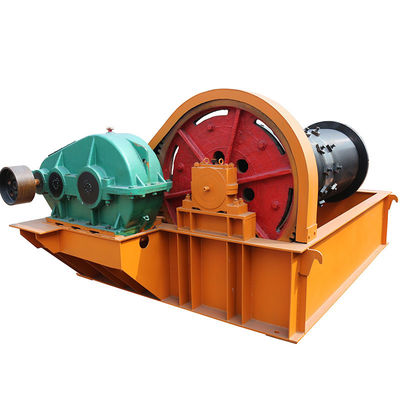

15M/Min Wire Rope Construction Electric Capstan Winch

Certification
China Henan Dowell Crane Co., Ltd. certification
China Henan Dowell Crane Co., Ltd. certification
Customer Reviews
Our company is DOWELL's old customer, several years has ordered a double beam overhead crane and single beam bridge crane

—— Sedanur BAYDAR

I'm Online Chat Now

15M/Min Wire Rope Construction Electric Capstan Winch

15M/Min Wire Rope Construction Electric Capstan Winch
15M/Min Wire Rope Construction Electric Capstan Winch
15M/Min Wire Rope Construction Electric Capstan Winch 15M/Min Wire Rope Construction Electric Capstan Winch 15M/Min Wire Rope Construction Electric Capstan Winch 15M/Min Wire Rope Construction Electric Capstan Winch 15M/Min Wire Rope Construction Electric Capstan Winch 15M/Min Wire Rope Construction Electric Capstan Winch

Large Image :  15M/Min Wire Rope Construction Electric Capstan Winch

Product Details:
Place of Origin: China (Mainland)
Brand Name: Dowellcrane
Certification: CE ISO SGS
Model Number: JM JK
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Packaging Details: white foam and export carton
Delivery Time: 30 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000 Sets per Year

15M/Min Wire Rope Construction Electric Capstan Winch

Description
Product Name: Wire Rope Construction Winch Efficient Electric Capstan Winch Light With Wireless Remote Rated Speed: 6-15 M/min
Warranty: 2 Years Working Class: M3-M6
Colour: Customized Voltage: 380V 3Ph AC Or Customized
Capacity: 1-10t Usage: Cable Pulling Machine,cranes,construction Hoist,Hositing,Carrying Heavy Goods
Speed: Slow Speed Or High Speed As Your Requirement
High Light:

Construction Electric Capstan Winch

,

15M/Min Electric Capstan Winch

,

M6 Electric Capstan Winch

Wire Rope Construction Winch Efficient Electric Capstan Winch Light With Wireless Remote



Product Description



Wire rope construction winch efficient electric capstan winch light with wireless remote is a kind of widely using machine in lifting machinery. It can lift heavy weight in the construction site and port pier, also it can be the tractive power in installing of the factories and mines.
It not only can be used independently, but also can work with other largescale and complex machine. It has been a necessary machine in the construction site and port pier.

Application

15M/Min Wire Rope Construction Electric Capstan Winch 0

Technical Data Sheet

Type
Rated load
(KN)
Rated speed
(m/min)
Rope capacity
(M)
Weight(KG)
Rope diameter
(mm)
POWER
JM1
10
15
100
270
9.3
3
JM1.6
16
16
150
500
12.5
5.5
JM2
20
16
150
550
13
7.5
JM3.2
32
9.5
150
1100
15.5
7.5
JM3.2B
32
12
195
536
15.5
7.5
JM5
50
10
270
1560
21.5
11
JM5B
50
9.5
200
1800
21.5
11
JM5C
50
9.5
250
1800
21.5
11
JM5D
50
15
250
1850
21.5
15
JM5E
50
20
250
2000
21.5
22
JM6
60
9.5
270
1800
24
15
JM8
80
8
250
2900
26
15
JM8B
80
9.5
350
2650
26
15



15M/Min Wire Rope Construction Electric Capstan Winch 1



Details Images


15M/Min Wire Rope Construction Electric Capstan Winch 2

Feature of electric capstan winch light :


1. Reasonable structure and design hoist
2. Easy to install and Maintenance
3. High efficiency and stable performance
4. Top quality with competitive and economic price
5. Double Speed: Low Speed and Normal Speed

Safety device of electric capstan winch light :

1. Double Limit Switch,
2. Current overload protection function,
3. High quality polyurethane materials buffer.
4. Emergency stop system.



Product packaging

15M/Min Wire Rope Construction Electric Capstan Winch 3

Our Advantages

15M/Min Wire Rope Construction Electric Capstan Winch 4

FAQ

1. What do you do?
- Our products mainly include: different types of overhead crane, gantry crane, beam girder launcher, hoist,winch, spider crane, lifting platform,etc lifting equipement.



2. Can you do OEM for us ?

- OEM are welcome for us. Customers’ brand, logo, label can be customized for the products and carton package, but based on a certain quantity.



3. Can you help us to do some change about your product?

- Yes, special drawing and design will be evaluated by our technical department, unit cost will be calculated by finance department for your final confirmation. All procedures will be informed and confirmed with you in advance.



4. Can I get a sample?

- Yes. Samples are welcome for us. But products cost and few extra cost will be charged from customer.



5. Are you a factory or trading company?

- We are a leading manufacturer and trading company in this line, the factory was established in 1955, Datong Machinery is one of the largest and historic manufacturers of hydraulic tools and other garage tools in China. The facotry has passed theISO9001:2008 quality management system. .



6. Where is your company location?

- The factory located in xinxiang city, HeNan Province.
