Product Details:
|
| Rated Speed: | 6-15 M/min | Warranty: | 2 Years |
|---|---|---|---|
| Working Class: | M3-M6 | Colour: | Customized |
| Voltage: | 380V 3Ph AC Or Customized | Capacity: | 1-10t |
| Usage: | Cable Pulling Machine,cranes,construction Hoist,Hositing,Carrying Heavy Goods | Speed: | Slow Speed Or High Speed As Your Requirement |
| Sling Type: | Wire Rope | Maximum Lifting Height: | As Your Requires |
| Rope Capacity: | As Your Requires | Drum: | Single/Double |
| High Light: | 6M/Min Electric Cable Winch,10t Lifting Electric Cable Winch,M6 Hoisting Electric Cable Winch |
||

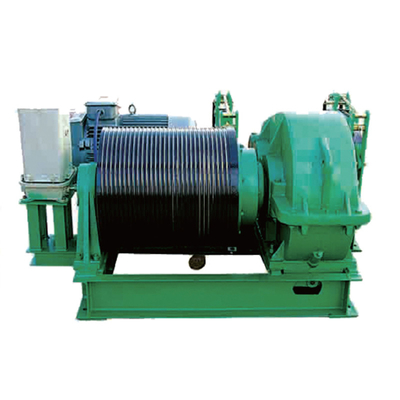

Industrial Electric Wire Rope Winch with Wireless Remote Control
Product Description
General industrial equipment electric wire rope winch is gear reducer driving winch. The structure is safe, reliable and efficient. This series of electric winch is mainly used for hoisting, pulling and unloading, towing the heavy cargo, such as the installation and removal of large-and-middle-sized concrete,steel structure and mechanical equipment. It's applicable to civil construction and installation works of construction and installation enterprises, road bridge engineering, mining areas,port, factories, etc.
Application
Efficiency small electric pulley industrial high speed electric winch with wireless remote is widely used on bridge /gantry carne, it is mainly used in marine to help lifting ship or fishing lifting, the large and middel sized concrete, steel structure, mechanical equipment installation and dismantling. The structural characteristics of steel wire rope is an orderly, lifting safe and reliable. Suitable for all kinds of bridge, port, wharf, road and bridge engineering.
Technical Data Sheet
|
Parameter of JM Electric Winch
|
||||||
|
Model
|
Rated Line Pull(KN)
|
Capacity of drum(m)
|
Wire rope
|
Motor
|
||
|
Diameter
(mm) |
lifting speed
(m/min) |
Motor model
|
Motor rating
(KW) |
|||
|
JM1
|
10
|
100
|
9.3
|
15
|
Y112M-6
|
3
|
|
JM2
|
20
|
150
|
13
|
16
|
Y160M-6
|
7.5
|
|
JM3.2
|
32
|
200
|
15.5
|
12
|
YZR160M-6
|
7.5
|
|
JM5
|
50
|
250
|
21.5
|
9.5
|
YZR160L-6
|
11
|
|
JM8
|
80
|
250
|
26
|
8
|
YZR180L-6
|
15
|
|
JM10
|
100
|
250
|
30
|
8
|
YZR200L-6
|
22
|
|
JM12
|
120
|
300
|
32
|
8
|
YZR225M-6
|
30
|
|
JM16
|
160
|
500
|
37
|
10
|
YZR250M-8
|
37
|
|
JM20
|
200
|
600
|
42
|
10
|
YZR280M-8
|
45
|
|
JM25
|
250
|
800
|
48
|
9
|
YZR280S-8
|
55
|
|
JM32
|
320
|
700
|
50
|
9
|
YZR315S-8
|
75
|
|
JM50
|
500
|
700
|
60
|
9
|
YZR315M-8
|
90
|
|
Parameter of JK Electric Winch
|
||||||
|
Model
|
Rated Line Pull(KN)
|
Capacity of drum(m)
|
Wire rope
|
Motor
|
||
|
Diameter
(mm) |
lifting speed
(m/min) |
Motor model
|
Motor rating
(KW) |
|||
|
JK1
|
10
|
80
|
9.3
|
22
|
Y112M-4
|
4
|
|
JK2
|
20
|
110
|
13
|
24
|
Y132M-4
|
7.5
|
|
JK3.2
|
32
|
250
|
15.5
|
30
|
YZR180L-6
|
15
|
|
JK5
|
50
|
200
|
21.5
|
30
|
YZR225M-6
|
30
|
|
JK8
|
80
|
250
|
26
|
30
|
YZR280S-8
|
45
|
|
JK10
|
100
|
300
|
30
|
30
|
YZR315S-8
|
55
|
Details Images
Efficiency small electric pulley industrial high speed electric winch with wireless remote is made up of motor, brake, drum, wire rope, electrical appliance, base ect , which can be customized according to client requirement .
Main Features:
Safety device of electric capstan winch light :
Our Advantage:
Product packaging
Our Advantages
Our Service
1) Pre-sale service:
Freely provide project designing, process designing, choosing suitable equipment for you.
2) Medium-sale service:
Accompany you to complete the acceptance of the equipment,draft the construction scheme and detailed process, and complete process of export.
3) After-sale service:
14 months warranty from the date of B/L
One year quick-wear parts for free
Professional technicians provide installation, commissioning services
Technical advisory for any time
