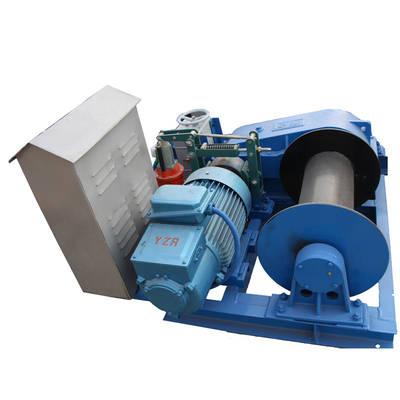

3Ph AC Electric Winch 15mm Steel Remote Control Three Phase

3Ph AC Electric Winch 15mm Steel Remote Control Three Phase
3Ph AC Electric Winch 15mm Steel Remote Control Three Phase
3Ph AC Electric Winch 15mm Steel Remote Control Three Phase 3Ph AC Electric Winch 15mm Steel Remote Control Three Phase 3Ph AC Electric Winch 15mm Steel Remote Control Three Phase

Large Image :  3Ph AC Electric Winch 15mm Steel Remote Control Three Phase

Product Details:
Place of Origin: China (Mainland)
Brand Name: Dowellcrane
Certification: SGS IOS CE
Model Number: Diesel Winch
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: USD 1000-10000 /Set
Packaging Details: Packed by high quality wooden box
Delivery Time: 20days
Payment Terms: L/C, T/T
Supply Ability: 2000 Set/Sets per Month

3Ph AC Electric Winch 15mm Steel Remote Control Three Phase

Description
Product Name: China Manufacturer High Quality Electric Winch Warranty: 3 Years
Power Supply: Diesel Engine Color: Customer Requirement
Material: Steel Rated Speed: As Demands
Power Source: Electric Voltage: 380V 3Ph AC Or Customized
High Light:

3Ph AC Electric Winch

,

15mm Electric Winch

,

Electric Winch Remote Control

China Manufacturer High Quality Electric Winch

Product Description



Winch is driven by mechanical power reel, winding rope to complete the traction of the device.It can be lifted vertically,horizontally or tilted to pull heavy objects.The electric hoist is composed of a motor, a coupling, a brake, a gear box and a drum, which are installed together on the frame.For the case of high lifting height and heavy loading and unloading, good speed adjustment performance can make the air hook drop quickly.Small speed can be used for materials that are in place or sensitive.



Product Drawing



3Ph AC Electric Winch 15mm Steel Remote Control Three Phase 0



Product Detail Parameters



Parameter of JM Electric Winch



Model



Rated Line Pull(KN)
Capacity of drum(m)
Wire rope
Motor
Diameter
(mm)
lifting speed
(m/min)
Motor model
Motor rating
(KW)
JM1
10
100
9.3
15
Y112M-6
3
JM2
20
150
13
16
Y160M-6
7.5
JM3.2
32
200
15.5
12
YZR160M-6
7.5
JM5
50
250
21.5
9.5
YZR160L-6
11
JM8
80
250
26
8
YZR180L-6
15
JM10
100
250
30
8
YZR200L-6
22
JM12
120
300
32
8
YZR225M-6
30
JM16
160
500
37
10
YZR250M-8
37
JM20
200
600
42
10
YZR280M-8
45
JM25
250
800
48
9
YZR280S-8
55
JM32
320
700
50
9
YZR315S-8
75
JM50
500
700
60
9
YZR315M-8
90















































Product Main Features



  • Excellent quality and competitive price.
  • Excellent quality and performance
  • Easy installation, operation and maintenance.
  • Low noise and good working conditions.
  • Widely used in double beam bridge crane and gantry crane.
  • Compact structure and reasonable design.
  • Safety protection device.
  • Reasonable structure and convenient maintenance.



Product Application



  1. Construction building
  2. Road and bridge construction ;
  3. Factory,mines engineer,harbor,etc


Packing and Delivery



3Ph AC Electric Winch 15mm Steel Remote Control Three Phase 1



  1. Use the wooden box made of inspection free plates in line with export requirements, and use plywood with a thickness of 9mm-15mm.
  2. The wooden box made of solid wood can meet the requirements of export through fumigation and detoxification.
  3. Boxes board joint is tight, the box board combination is smooth without dislocation, the cloth nail is reasonable, the reinforcement belt is not less than 2, to meet the requirements of the export.



FAQ



1. Q: What’s your MOQ?
A: 1 Set;

2. Q: What’s your package?
A: Main body in plywood box or in plastic woven cloths; Spare parts in plywood boxes;

3. Q: What’s your delivery period?
A: Within 10/25/40 days after your prepayment received; exact period should be based on detailed requirements and actual period;

4. Q: What’s your warranty period?
A: 36 months from winches accepted;

5. Q: Do you have engineer oversea installation service?
A: Yes; We have
