Product Details:
|
| Product Name: | 10 Ton Electric Winch | Warranty: | 3 Years |
|---|---|---|---|
| Power Supply: | Diesel Engine | Color: | Customer Requirement |
| Material: | Steel | Rated Speed: | As Demands |
| Power Source: | Electric | Voltage: | 380V 3Ph AC Or Customized |
| High Light: | Electric Winch Heavy Duty,High Speed 10 Ton Electric Winch,JK Model Electric Winch |
||

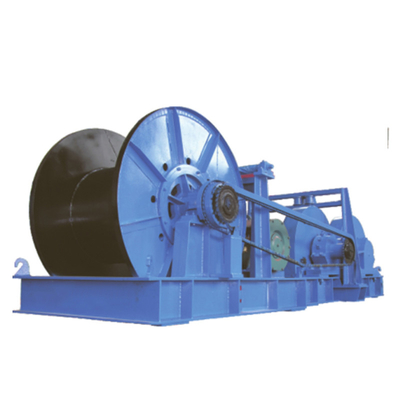

10 ton Electric Winch Description
Electric winch or windlass is a kind of widely used machine in lifting machinery field. 10 ton Electric Winch mainly used for large and oversize concrete of steel installation and disassembly of mechanical equipment.This structural characteristic is wirerope orderly arrangement lifting is safe and realiable.It is suitable for bridge port and ect road and bridge engineering and large factories and mines engineering equipments installation.
10 ton Electric Winch Drawing
10 ton Electric Winch Parameters
| WINCH TECHNIQUE PARAMETER | ||||||||||||
| Rated load (KN) | Rated speed (m/min) | Rope capacity (m) | Rope Diameter (mm) | Motor type | Motor power (KN) | Overall dimension (mm) | Weight(Kg) | Type | ||||
| JK MODEL FAST SPEED ELECTRONIC CONTROL WINCH | JK0.5 | 5 | 22 | 190 | 7.7 | Y100L-4 | 3 | 620*701*417 | 200 | / | ||
| JK1 | 10 | 22 | 100 | 9.3 | Y112M-4 | 4 | 620*701*417 | 300 | / | |||
| JK1.6 | 16 | 24 | 150 | 12.5 | Y132S-4 | 5.5 | 945*996*570 | 500 | / | |||
| JK2 | 20 | 24 | 150 | 13 | Y132M-4 | 7.5 | 945*996*570 | 550 | / | |||
| KK3.2 | 32 | 25 | 290 | 15.5 | YZR180L-6 | 15 | 1325*1335*840 | 1011 | / | |||
| JK3.2B | 32 | 30 | 250 | 15.5 | YZR200L-6 | 22 | 1900*1738*985 | 1500 | / | |||
| JK5 | 50 | 30 | 300 | 21.5 | YZR225M-6 | 30 | 1900*1620*985 | 2050 | / | |||
| JK5B | 50 | 25 | 210 | 21.5 | YZR225M-8 | 22 | 2250*2500*1300 | 2264 | / | |||
| JK8 | 80 | 25 | 160 | 26 | YZR280S-8 | 45 | 1533*1985*1045 | 3000 | / | |||
| JK10 | 100 | 30 | 300 | 30 | YZR315S-8 | 55 | 2250*2500*1300 | 5100 | / | |||
10 ton Electric Winch Advantages
Packing and Delivery
Our Advantage
FAQ
A: Can you provide custom service?
B: Yes, of course. We are manufacturer and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you should tell us what you need.
A: Are there any professional technicians to assist our installation?
B: Yes. We have a professional installation team, who has already been to many countries to assist the installation. If you need our technicians to offer this service, please let us know in advance. So that we can arrange the suitable technicians to your country.
A: Whether or not you can offer the matched spare parts?
B: Yes, as a crane manufacturer, we can offer all the related spare parts. Such as motor, hoists, drums, wheels,grabs, hooks, rails, travel beams, enclosed bus bar, etc.
A: How can you ensure the quality?
B: Before delivery, every product will be tested strictly and we will send you the quality certification. You are also warmly
