Product Details:
|
Product Name: | Electric Winch Machine | Warranty: | 3 Years |
---|---|---|---|
Power Supply: | Diesel Engine | Color: | Customer Requirement |
Material: | Steel | Rated Speed: | As Demands |
Power Source: | Electric | Voltage: | 380V 3Ph AC Or Customized |
High Light: | Cable Electric Winch Machine,High Speed Steel Electric Winch,380V Steel Electric Winch |

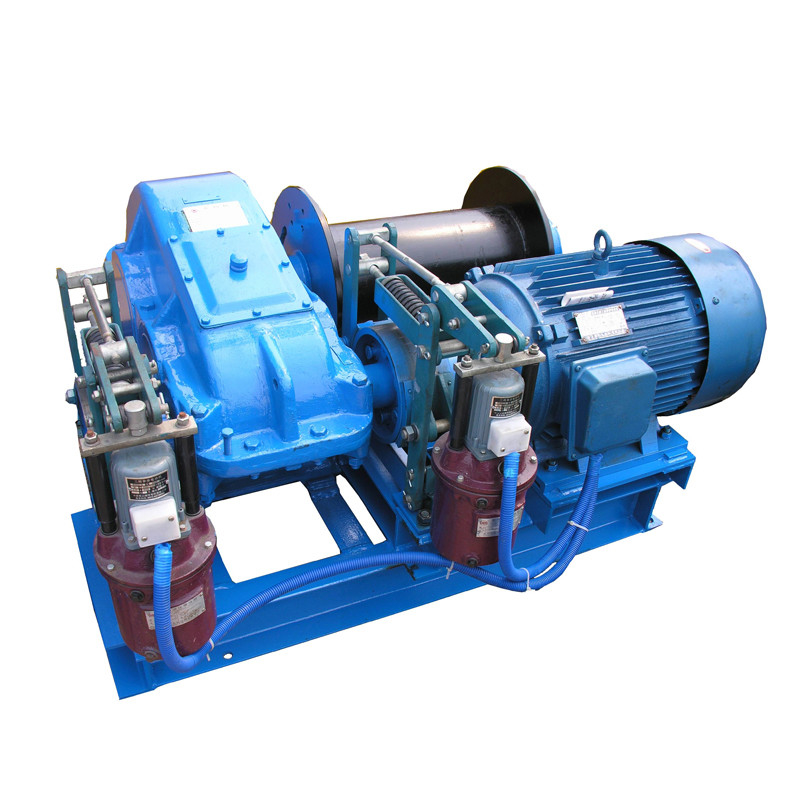

Electric Winch Machine Description
Winch is driven by human or mechanical power drum, winding ropes to complete the traction device for work, which can be vertical, horizontal or inclined pulling heavy objects. Divided into manual and electric winch.
Electric winch is powered by electric, and it composed by electric motor, coupling, brake, gear box,drum and frame.
Electric Winch Machine Drawing
Electric Winch Machine Parameters
WINCH TECHNIQUE PARAMETER | ||||||||||||
Rated load (KN) | Rated speed (m/min) | Rope capacity (m) | Rope Diameter (mm) | Motor type | Motor power (KN) | Overall dimension (mm) | Weight(Kg) | Type | ||||
JK MODEL FAST SPEED ELECTRONIC CONTROL WINCH | JK0.5 | 5 | 22 | 190 | 7.7 | Y100L-4 | 3 | 620*701*417 | 200 | / | ||
JK1 | 10 | 22 | 100 | 9.3 | Y112M-4 | 4 | 620*701*417 | 300 | / | |||
JK1.6 | 16 | 24 | 150 | 12.5 | Y132S-4 | 5.5 | 945*996*570 | 500 | / | |||
JK2 | 20 | 24 | 150 | 13 | Y132M-4 | 7.5 | 945*996*570 | 550 | / | |||
KK3.2 | 32 | 25 | 290 | 15.5 | YZR180L-6 | 15 | 1325*1335*840 | 1011 | / | |||
JK3.2B | 32 | 30 | 250 | 15.5 | YZR200L-6 | 22 | 1900*1738*985 | 1500 | / | |||
JK5 | 50 | 30 | 300 | 21.5 | YZR225M-6 | 30 | 1900*1620*985 | 2050 | / | |||
JK5B | 50 | 25 | 210 | 21.5 | YZR225M-8 | 22 | 2250*2500*1300 | 2264 | / | |||
JK8 | 80 | 25 | 160 | 26 | YZR280S-8 | 45 | 1533*1985*1045 | 3000 | / | |||
JK10 | 100 | 30 | 300 | 30 | YZR315S-8 | 55 | 2250*2500*1300 | 5100 | / |
Electric Winch Machine Advantages
Packing and Delivery
Our Advantage
How to choose the suitable electric wire rope winch?
1,Application? Lifting or pulling what matrial/cargo?
2,What capacity do you need?
3,Winch's working direction:horizontal or vertical?
4,How about the working speed?
5,How many of the working distance?
6, Whether need us providing wire rope?
