Product Details:
|
| Product Name: | High Speed Electric Winch | Warranty: | 3 Years |
|---|---|---|---|
| Power Supply: | Diesel Engine | Color: | Customer Requirement |
| Material: | Steel | Rated Speed: | As Demands |
| Power Source: | Electric | Voltage: | 380V 3Ph AC Or Customized |
| High Light: | Power Electric Winch High Speed,Double Drum Power Electric Winch,3Ph Power Electric Winch |
||

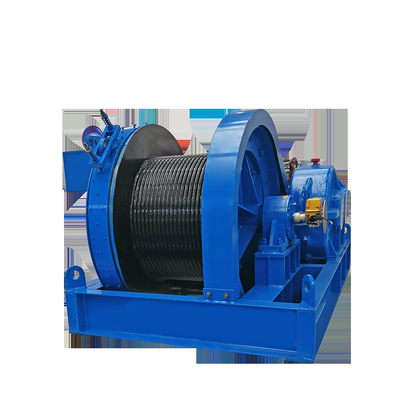

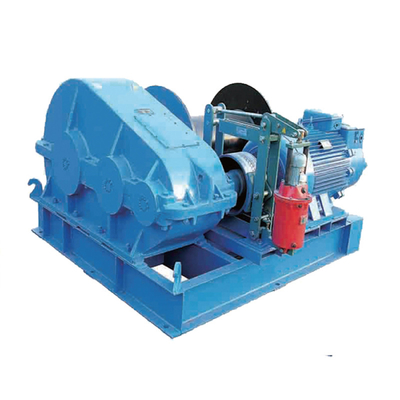

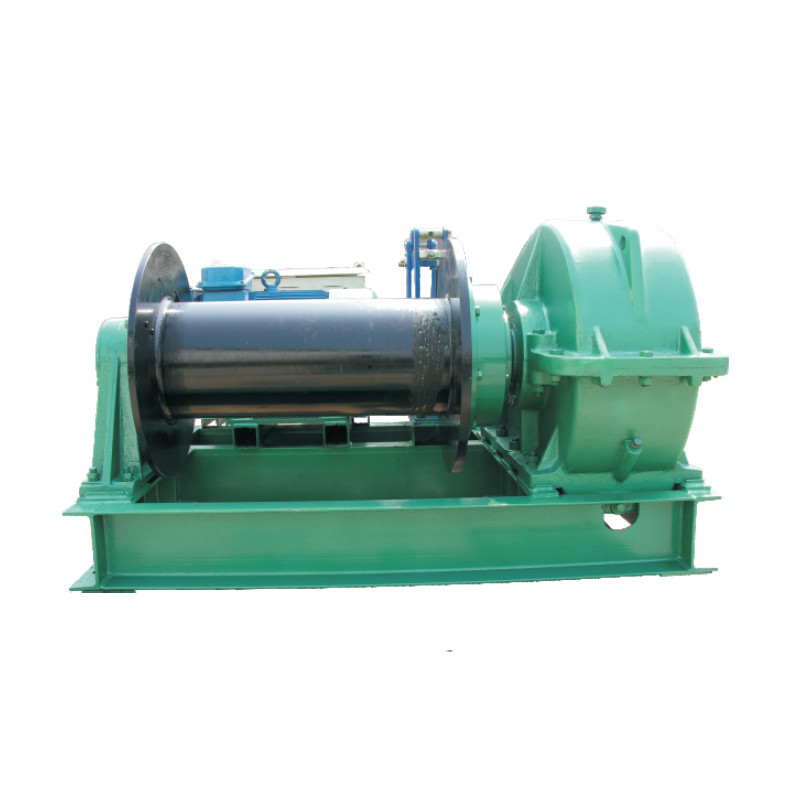

High Speed Electric Winch Description
JK fast series Winch mainly used for large and oversize concrete of steel installation and disassembly of mechanical equipment.This structural characteristic is wirerope orderly arrangement lifting is safe and realiable.It is suitable for bridge port and ect road and bridge engineering and large factories and mines engineering equipments installation.
High Speed Electric Winch Drawing
High Speed Electric Winch Parameters
| WINCH TECHNIQUE PARAMETER | ||||||||||||
| Rated load (KN) | Rated speed (m/min) | Rope capacity (m) | Rope Diameter (mm) | Motor type | Motor power (KN) | Overall dimension (mm) | Weight(Kg) | Type | ||||
| JK MODEL FAST SPEED ELECTRONIC CONTROL WINCH | JK0.5 | 5 | 22 | 190 | 7.7 | Y100L-4 | 3 | 620*701*417 | 200 | / | ||
| JK1 | 10 | 22 | 100 | 9.3 | Y112M-4 | 4 | 620*701*417 | 300 | / | |||
| JK1.6 | 16 | 24 | 150 | 12.5 | Y132S-4 | 5.5 | 945*996*570 | 500 | / | |||
| JK2 | 20 | 24 | 150 | 13 | Y132M-4 | 7.5 | 945*996*570 | 550 | / | |||
| KK3.2 | 32 | 25 | 290 | 15.5 | YZR180L-6 | 15 | 1325*1335*840 | 1011 | / | |||
| JK3.2B | 32 | 30 | 250 | 15.5 | YZR200L-6 | 22 | 1900*1738*985 | 1500 | / | |||
| JK5 | 50 | 30 | 300 | 21.5 | YZR225M-6 | 30 | 1900*1620*985 | 2050 | / | |||
| JK5B | 50 | 25 | 210 | 21.5 | YZR225M-8 | 22 | 2250*2500*1300 | 2264 | / | |||
| JK8 | 80 | 25 | 160 | 26 | YZR280S-8 | 45 | 1533*1985*1045 | 3000 | / | |||
| JK10 | 100 | 30 | 300 | 30 | YZR315S-8 | 55 | 2250*2500*1300 | 5100 | / | |||
High Speed Electric Winch Advantages
Packing and Delivery
Our Advantage
FAQ:
Q.Can i have a price?
After getting your parameters,we will offer you a accurate price.
Q.Can I customize products?
Yes,we can offer OEM and ODM services
Q.What’s your delivery period?
Within 10/25/40 days after your prepayment received; exact period should be based on detailed requirements and actual period;
Q.Do you have engineer oversea installation service?
Yes; We have;
Q.What kinds of products do you have?
All kinds of industrial electric winch (especially non-standard); Overhead Crane; Gantry Crane, Electric Hoist; Screw Hoist;
Radial/Flat Gate Hoist; Steel Gate; etc.
Q.Do you offer after-sales service?
We have after-sales team to support you.
Q.How long will it take to ship to my country?
For international shipping, it depends on the product quantity and delivery address. For a specific estimate, please provide these details so that I can quote the most cost-effective option.
