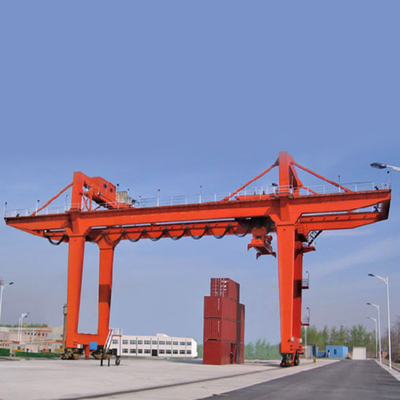

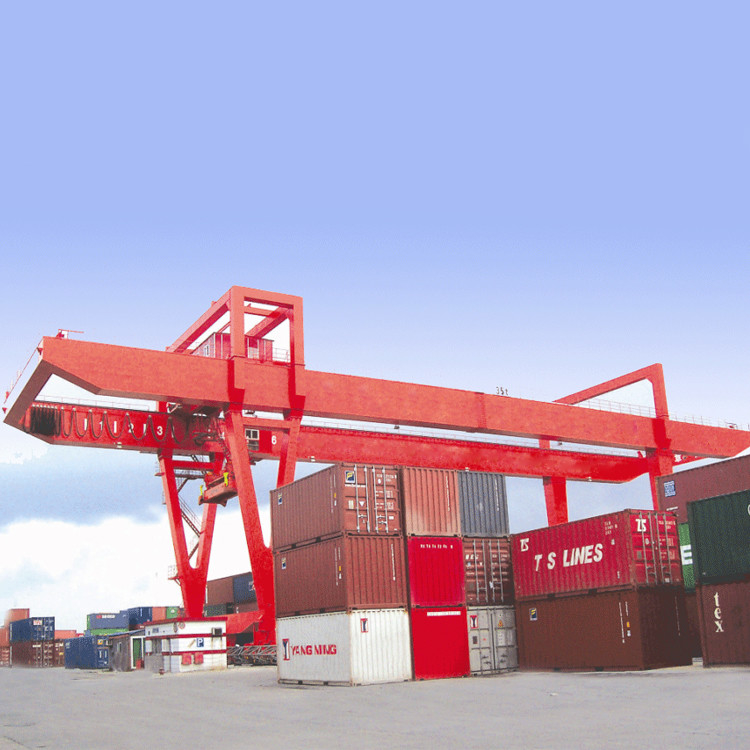

Double Girder Container Lifting Gantry Crane Industrial Rubber Tired Frame

Double Girder Container Lifting Gantry Crane Industrial Rubber Tired Frame
Double Girder Container Lifting Gantry Crane Industrial Rubber Tired Frame Double Girder Container Lifting Gantry Crane Industrial Rubber Tired Frame

Large Image :  Double Girder Container Lifting Gantry Crane Industrial Rubber Tired Frame

Product Details:
Place of Origin: China (Mainland)
Brand Name: Dowellcrane
Certification: ISO CE BV CCC GOST
Model Number: RMG
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: $2000~30000/1 set
Packaging Details: Main body packaged by high quality water-proof plastic woven cloths; spare parts are packed in high quality plywood box.
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000 Sets per Year

Double Girder Container Lifting Gantry Crane Industrial Rubber Tired Frame

Description
Product Name: Container Lifting Crane Control Method: Cabin Control/wire Rope Remote Control
Certification: CE,ISO Condition: New
Warranty: 3 Years Span: Customized
Feature: Gantry Crane Application: Outdoor,Warehouse,factory,workshop
Color: Customer Requirements After-sales Service Provided: Engineers Available To Service Machinery Overseas,Online Support,Field Maintenance And Repair Service
High Light:

Double Girder Container Lifting Crane

,

Rubber Tired Frame Container Lifting Crane

,

310 kN Container Gantry Crane

Industrial Rubber Tired Frame Type Double Girder Container Lifting Crane





Container Lifting Crane Description



Container Gantry Crane adopts tyred walk line technology, the machine go line, steering, lifting all by the hydraulic pressure drive, to achieve straight, oblique line, transverse line and other modes of walking, can meet all the preset box girder handling operation.
Rubber tyred gantry crane can conduct cross-span work. It can lift the intergrally assebled launching gantry up to the bridge, also can lift the precast girder onto the girder trolley accordingly.



Container Lifting Crane Drawings

Double Girder Container Lifting Gantry Crane Industrial Rubber Tired Frame 0



Container Lifting Crane Parameters



Model Container Gantry Crane LightType LJ40-23
Capacity(under spreader) (t) 35,40 40
Work Duty A7,A8 A6,A7
Span (m) 23.47 23.47
Lifting Height (m) 12.2~17.8 16.5
Stack Layers/Passing Layers 3/4~5/6 5/6
Container Model 20',40',45' 20',40',45'
Spreader Rotating Angle ±5° ±5°
Hoisting Speed (m/min) 13/26,23/52 12/18,18/28
Cross Travel Speed (m/min) 50,70 24
Long Travel Speed (m/min) Full Load-90,Without Load-130 Full Load-20,Without Load-40
Max.Wheel Load (kN) 310 310
Total Rating (kW) 150,230 110,150
Power Supply Electric,Diesel engine,Electric-Diesel drive



Container Lifting Crane Features



  1. Rubber tyred gantry crane have lifting limit switch,cross traveling limit switch,long traveling limit switch.
  2. Provide Triple breaking system.
  3. Emergency stop button, Limit switch, sensor are located at designated location.
  4. Lighting and spare-parts come with the rubber tyred gantry crane.



Container Lifting Crane Details

Double Girder Container Lifting Gantry Crane Industrial Rubber Tired Frame 1



Container Lifting Crane Safety devices



  • Safety Parameters
  • Weight overload protection device
  • Phase protection
  • Lifting limit switch
  • Cross travelling limit switch
  • Long traveling limit switch
  • Voltage lower protection function
  • Emergency stop system
  • Current overload protection system
  • Light and alarm system​



Package and Delivery



Double Girder Container Lifting Gantry Crane Industrial Rubber Tired Frame 2



Our Services



  1. We have a professional sales team,can privede u a quick and professional reply.
  2. Exclusive engineer support at any time, so we can design within 24 hours.
  3. 2 year warranty for whole machines, providing all parts free of charge.
  4. Low charge for continue maintenance when warranty is expired.
  5. Can produce the largest tonnage crane,just give us your demand.
  6. We can provide free training to end-users, don't worry about the installation.
