Product Details:
|
| Product Name: | Rubber Tyred Gantry Crane | Ambient Temperature: | -20℃~+40℃ |
|---|---|---|---|
| Lifting Height: | 20-30 Meters | Capacity: | 1-100 Ton |
| Hoisting Mechanism: | Wire Rope | Lifting Mechanism: | Hydraulic Lift |
| Crane Traveling Speed: | 20-30 M/min | Control Way: | Radio Control+cabin Control |
| High Light: | Duty Rubber Tyred Gantry Crane,A7 Duty Rubber Tyred Gantry Crane,Shipping Containers 55 ton Gantry Crane |
||

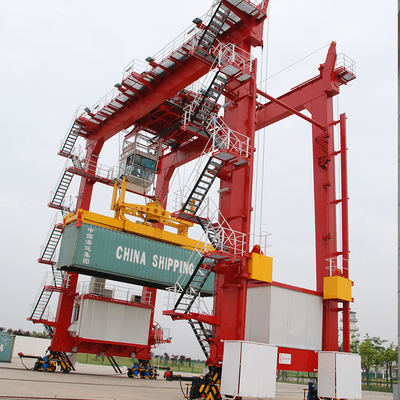

A3-A7 Duty Rubber Tyred Gantry Crane For Shipping Containers 55 Ton
Our Shipping Container Crane is a RTG crane specially designed for cargo container handling. It is suitable for A3-A7 working duty, with lifting capacity ranging from 1 to 100 tons and lifting height from 20 to 30 meters. It can be operated by either radio control or cabin control, and the color can be customized according to the customer’s needs. The crane is equipped with a powerful engine and a dedicated anti-sway system, ensuring stable and reliable performance even under high load. With its low cost, easy maintenance and high operational efficiency, it is the best choice for cargo container handling.
Model |
LJ35/40-23 |
LightType LJ40-23 |
| Capacity(under spreader) (t) | 35,40 | 40 |
| Work Duty | A7,A8 | A6,A7 |
| Span (m) | 23.47 | 23.47 |
| Lifting Height (m) | 12.2~17.8 | 16.5 |
| Stack Layers/Passing Layers | 3/4~5/6 | 5/6 |
| Container Model | 20',40',45' | 20',40',45' |
| Spreader Rotating Angle | ±5° | ±5° |
| Hoisting Speed (m/min) | 13/26,23/52 | 12/18,18/28 |
| Cross Travel Speed (m/min) | 50,70 | 24 |
| Long Travel Speed (m/min) | Full Load-90,Without Load-130 | Full Load-20,Without Load-40 |
| Max.Wheel Load (kN) | 310 | 310 |
| Total Rating (kW) | 150,230 | 110,150 |
| Power Supply | Electric,Diesel engine,Electric-Diesel drive | |
Our shipping container crane technical support and services provide you with the necessary resources to operate your crane safely and efficiently. We provide a comprehensive range of professional services to ensure that your crane is running smoothly and that all safety regulations are adhered to.
Our team of experienced engineers offers a full range of services including:
We also provide a range of additional services to help maintain your crane in peak condition, including:
Our experienced team of engineers is available 24/7 to help you with any technical support and services that you require.
The shipping container crane is packaged and shipped as a large, heavy-duty item. The following items are included in the shipping package:
The shipping package is securely packed to ensure the safety of the crane during transportation. The package is also clearly labeled with the destination address, sender's address, and a description of the package's contents.
The shipping container crane is shipped via a reputable shipping carrier. The carrier is responsible for ensuring the safe and timely delivery of the crane to its destination.
