Product Details:
|
| Product Name: | RTG Gantry Crane | Lifting Mechanism: | Hydraulic Lift |
|---|---|---|---|
| Working Duty: | A3-A7 | Hoisting Mechanism: | Wire Rope |
| Color: | Customized | Capacity: | 1-100 Ton |
| Span: | 18-25 Meters | Lifting Height: | 20-30 Meters |
| High Light: | 55 Ton RTG Gantry Crane,RTG Gantry Crane With Rubber Tyre,electrical Lifting Mechanism Gantry Crane |
||

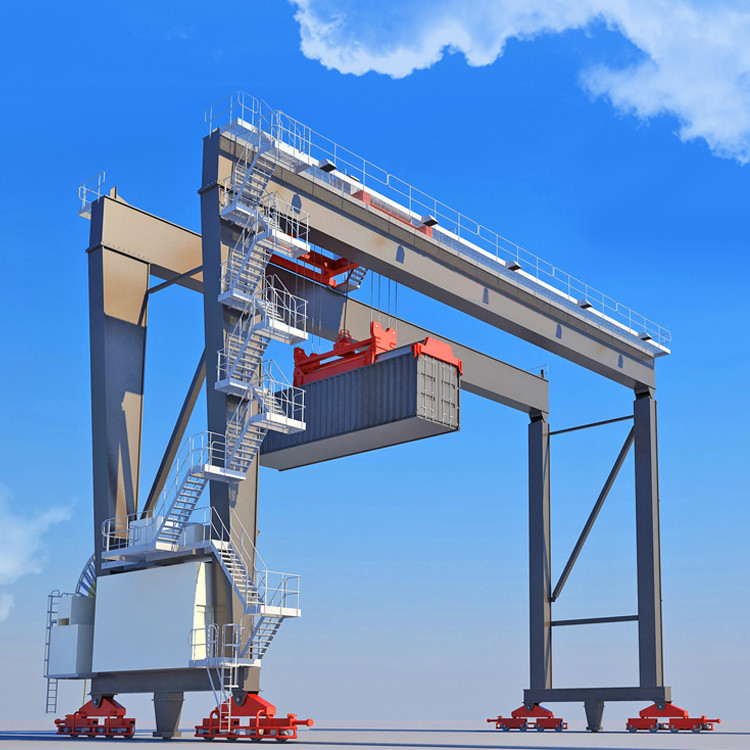

Electrical Lifting Mechanism 55 Ton RTG Gantry Crane With Rubber Tyre
A Shipping Container Crane is a kind of advanced container gantry crane or RTG crane specially designed for transporting and loading/unloading shipping containers in ports, terminals and warehouses. It features a fast and high-precision crane travelling speed of 20-30 meters per minute, an efficient hydraulic lift system with a span of 18-25 meters, and a user-friendly remote radio control and cabin control system for maximum convenience.
This crane is built to bear large loads and is equipped with advanced safety features for smooth and reliable operations. Moreover, it is available in custom colors to suit your specific requirements. With its high efficiency, robust construction, and outstanding performance, the Shipping Container Crane is an ideal solution for ports, terminals, and warehouses.
|
Model |
LJ35/40-23 |
LightType LJ40-23 |
| Capacity(under spreader) (t) | 35,40 | 40 |
| Work Duty | A7,A8 | A6,A7 |
| Span (m) | 23.47 | 23.47 |
| Lifting Height (m) | 12.2~17.8 | 16.5 |
| Stack Layers/Passing Layers | 3/4~5/6 | 5/6 |
| Container Model | 20',40',45' | 20',40',45' |
| Spreader Rotating Angle | ±5° | ±5° |
| Hoisting Speed (m/min) | 13/26,23/52 | 12/18,18/28 |
| Cross Travel Speed (m/min) | 50,70 | 24 |
| Long Travel Speed (m/min) | Full Load-90,Without Load-130 | Full Load-20,Without Load-40 |
| Max.Wheel Load (kN) | 310 | 310 |
| Total Rating (kW) | 150,230 | 110,150 |
| Power Supply | Electric,Diesel engine,Electric-Diesel drive | |
We provide complete technical support and service for all our shipping container crane products. Our team of experienced professionals will help you with installation, commissioning, maintenance and repair of your crane.
We also offer a full range of spare parts for our shipping container crane products, including motors, gearboxes, hydraulic systems, and other components. We can also provide custom solutions to meet your specific needs.
For any questions or concerns, please don't hesitate to contact us at any time. We are here to help you get the most out of your shipping container crane.
The shipping container crane is packaged for safety and security during shipping. It is placed in a protective wooden crate to protect it from damage during shipment.
The crate is secured with strong metal straps to keep it stable and secure during transport. The crane is secured in the crate with thick foam padding and additional straps to ensure it does not shift during transit.
The crane is shipped via truck or freight train, depending on the location of the shipping destination. The crane is monitored during shipping to ensure it arrives safely and on time.
Q: What is the Brand Name of this Shipping Container Crane?
A: The Brand Name of this Shipping Container Crane is Dowell Crane.
Q: What is the Model Number of this Shipping Container Crane?
A: The Model Number of this Shipping Container Crane is RTG.
Q: What is the minimum order quantity?
A: The minimum order quantity is 1 Set.
Q: What is the Packaging Details?
A: The Packaging Details are wooden case for electric parts, others by plastic woven cloth. It can reduce abrasion when transport.
Q: How long is the Delivery Time?
A: The Delivery Time is 90 work days.
