Product Details:
|
| Product Name: | Rubber Tyre Gantry Crane | Working Duty: | A3-A7 |
|---|---|---|---|
| Capacity: | 1-100 Ton | Hoisting Mechanism: | Wire Rope |
| Ambient Temperature: | -20℃~+40℃ | Lifting Mechanism: | Hydraulic Lift |
| Span: | 18-25 Meters | Lifting Height: | 20-30 Meters |
| High Light: | 150 Ton Shipping Gantry Crane,Rubber Tyre Shipping Gantry Crane,Shipping Container Crane For Lifting Goods |
||

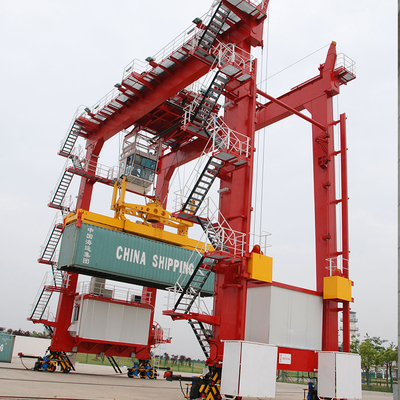

Qualified Shipping 150 Ton Rubber Tyre Gantry Crane For Lifting Goods
The Shipping Container Crane is a powerful and efficient piece of machinery, capable of lifting, carrying and moving shipping containers with ease. It features a hydraulic lift span of 18-25 meters, and a crane traveling speed of 20-30 m/min, making it an ideal choice for a variety of industrial applications. With a working duty of A3-A7, and an ambient temperature range of -20℃~+40℃, the Shipping Container Crane is designed to operate in even the harshest of conditions. It is highly reliable and easy to operate, offering operators a safe and efficient solution for their shipping container needs. With its heavy-duty construction and powerful hydraulic lift, the Shipping Container Crane is an excellent choice for any shipping container transport needs.
|
Model |
LJ35/40-23 |
LightType LJ40-23 |
| Capacity(under spreader) (t) | 35,40 | 40 |
| Work Duty | A7,A8 | A6,A7 |
| Span (m) | 23.47 | 23.47 |
| Lifting Height (m) | 12.2~17.8 | 16.5 |
| Stack Layers/Passing Layers | 3/4~5/6 | 5/6 |
| Container Model | 20',40',45' | 20',40',45' |
| Spreader Rotating Angle | ±5° | ±5° |
| Hoisting Speed (m/min) | 13/26,23/52 | 12/18,18/28 |
| Cross Travel Speed (m/min) | 50,70 | 24 |
| Long Travel Speed (m/min) | Full Load-90,Without Load-130 | Full Load-20,Without Load-40 |
| Max.Wheel Load (kN) | 310 | 310 |
| Total Rating (kW) | 150,230 | 110,150 |
| Power Supply | Electric,Diesel engine,Electric-Diesel drive | |
We provide technical support and service for our Shipping Container Crane. Our team of experienced service technicians are available 24/7 to assist you with any technical issues you may encounter. We offer on-site and remote support, as well as a variety of online resources. Our online resources include:
The Shipping Container Crane will be securely packaged in a custom designed wooden crate, allowing for safe and secure transportation. The crate will be carefully sealed to ensure the safety of the crane during transit.
The Shipping Container Crane will be shipped via reliable freight carriers, who guarantee a safe delivery within the specified time frame. The shipping costs will depend on the final destination of the crane.
