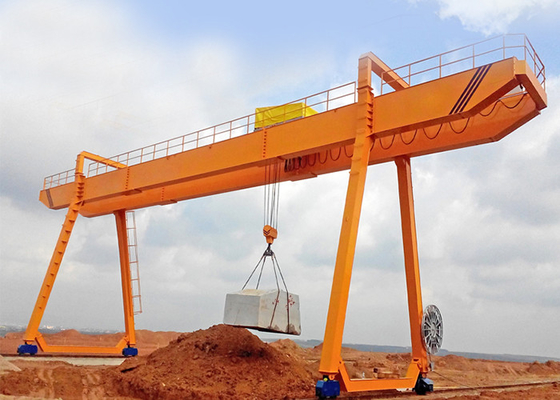

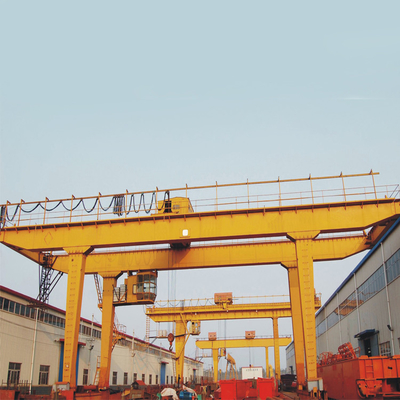

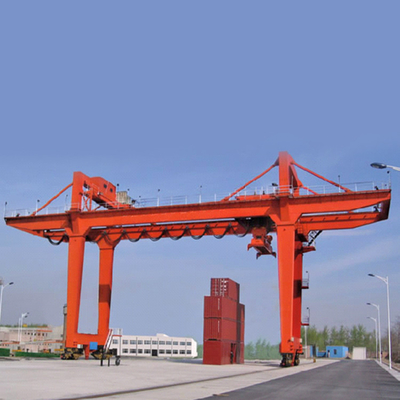

RTG / RMG Type Gantry Crane Container Handling Electric Motorized

RTG / RMG Type Gantry Crane Container Handling Electric Motorized
RTG / RMG Type Gantry Crane Container Handling Electric Motorized RTG / RMG Type Gantry Crane Container Handling Electric Motorized RTG / RMG Type Gantry Crane Container Handling Electric Motorized

Large Image :  RTG / RMG Type Gantry Crane Container Handling Electric Motorized

Product Details:
Place of Origin: China (Mainland)
Brand Name: Dowellcrane
Certification: ISO CE BV CCC GOST
Model Number: RMG
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: $2000~30000/1 set
Packaging Details: Main body packaged by high quality water-proof plastic woven cloths; spare parts are packed in high quality plywood box.
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000 Sets per Year

RTG / RMG Type Gantry Crane Container Handling Electric Motorized

Description
Product Name: Container Handling Gantry Crane Control Method: Cabin Control/wire Rope Remote Control
Certification: CE,ISO Condition: New
Warranty: 3 Years Span: Customized
Feature: Gantry Crane Application: Outdoor,Warehouse,factory,workshop
Color: Customer Requirements After-sales Service Provided: Engineers Available To Service Machinery Overseas,Online Support,Field Maintenance And Repair Service
High Light:

RMG Container Handling Gantry Crane

,

Electric Motorized Container Handling Gantry Crane

,

Electric Motorized Container Gantry Crane

RTG/RMG Type Electric Motorized Container Handling Gantry Crane



Container Handling Gantry Crane Description



Rubber Tyre Gantry Cranes(RTG) are special equipments to remove, load and unload international standard containers. Running and moving in the yard, it has the advantage of high production efficiency and fine maneuverability, also the small sensibility to unevenness of the ground. RTG has tractor trolley and standard trolley two models. RTG is powered by cable drum. At the same time, diesel generating set is equipped for conditions when the power is off or the crane moves to another yard.



Container Handling Gantry Crane Drawings

RTG / RMG Type Gantry Crane Container Handling Electric Motorized 0



Container Handling Gantry Crane Parameters



Parameter(customizable)
Item
Technical parameter
Rated load
40T
Max. lifting height
2360mm
Max. lifting speed
0.04m/s
Self weight
9.5T
Model of generator set
KM385QB KM485QB
Generator power/Rated rotate speed
26/3300kw/r/min 35/3300kw/r/min
Max. torque/Rotate speed
85/2110~2310[Nm/r min] 115/2110~2310[Nm/r min]
Max. running speed
4km/h
Lifting hydraulic cylinder dia.
180mm
Lift system pressure
16Mpa
Steering hydraulic cylinder dia.
75mm
steering system pressure
15Mpa
Torque of hydraulic motor
949Nm
Hydraulic motor speed range
6~400r/min
Drive wheel dia.
450mm
Min. ground clearance
80mm
Outline dimension
Length
6000mm
Width
5800mm
Height
7500mm




Container Handling Gantry Crane Features



●High efficiency of handling,stacking and overturning operations for over length,over width or overweight.subjects
●Adjustable operation speed,zero speed braking,noneed brake maintains
●Frame modular demountablestructure,easy installation
●Wireless remote control ofreliability and handl eability dual control lever with real-time operatingsystem,achieves unlimited sight
●Whole product with propersize and maneuverability
●Can add extra weigher andheight restriction digital indicator safety system
●According to user requirements can be customized design and manufacturing



Container Lifting Crane Details

RTG / RMG Type Gantry Crane Container Handling Electric Motorized 1



Container Handling Gantry Crane Safety devices



  • Safety Parameters
  • Weight overload protection device
  • Phase protection
  • Lifting limit switch
  • Cross travelling limit switch
  • Long traveling limit switch
  • Voltage lower protection function
  • Emergency stop system
  • Current overload protection system
  • Light and alarm system​



Package and Delivery



RTG / RMG Type Gantry Crane Container Handling Electric Motorized 2



Our Services



  1. We have a professional sales team,can privede u a quick and professional reply.
  2. Exclusive engineer support at any time, so we can design within 24 hours.
  3. 2 year warranty for whole machines, providing all parts free of charge.
  4. Low charge for continue maintenance when warranty is expired.
  5. Can produce the largest tonnage crane,just give us your demand.
  6. We can provide free training to end-users, don't worry about the installation.
