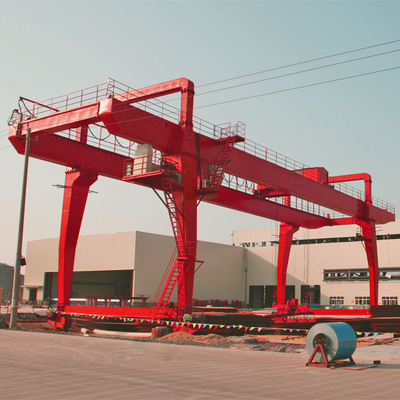

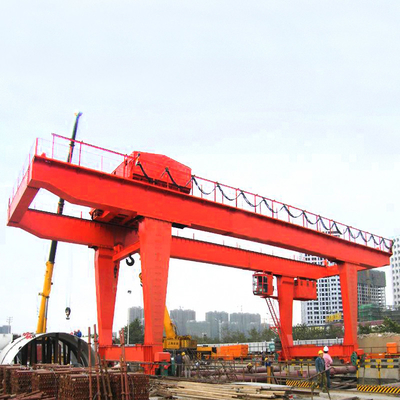

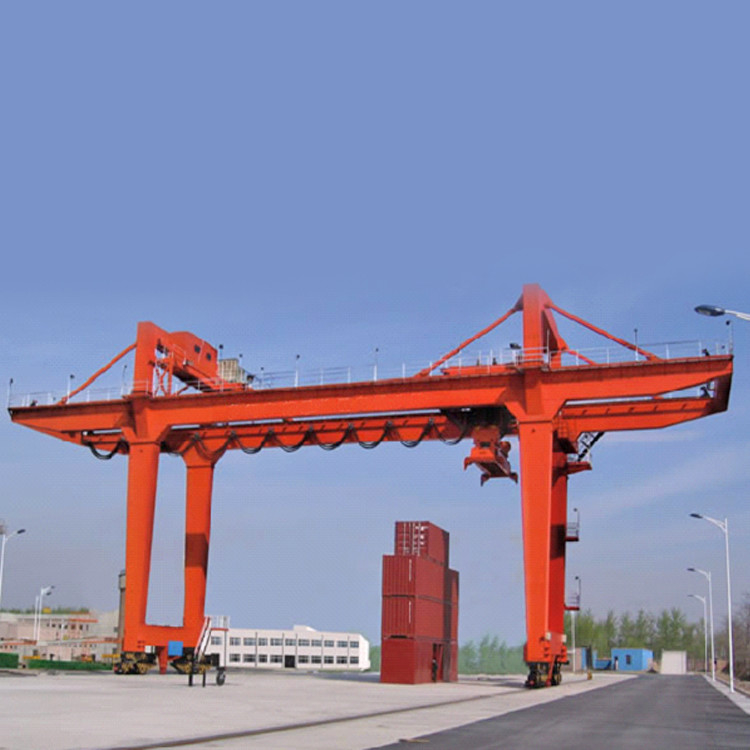

Container Mobile Gantry Crane Rail Mounted Customized Cabin Control

Container Mobile Gantry Crane Rail Mounted Customized Cabin Control
Container Mobile Gantry Crane Rail Mounted Customized Cabin Control Container Mobile Gantry Crane Rail Mounted Customized Cabin Control Container Mobile Gantry Crane Rail Mounted Customized Cabin Control

Large Image :  Container Mobile Gantry Crane Rail Mounted Customized Cabin Control

Product Details:
Place of Origin: China (Mainland)
Brand Name: Dowellcrane
Certification: ISO CE BV CCC GOST
Model Number: RMG
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: $2000~30000/1 set
Packaging Details: Main body packaged by high quality water-proof plastic woven cloths; spare parts are packed in high quality plywood box.
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000 Sets per Year

Container Mobile Gantry Crane Rail Mounted Customized Cabin Control

Description
Product Name: Mobile Gantry Crane Control Method: Cabin Control/wire Rope Remote Control
Certification: CE,ISO Condition: New
Warranty: 3 Years Span: Customized
Feature: Gantry Crane Application: Outdoor,Warehouse,factory,workshop
Color: Customer Requirements After-sales Service Provided: Engineers Available To Service Machinery Overseas,Online Support,Field Maintenance And Repair Service
High Light:

Container Mobile Gantry Crane

,

Rail Mounted Mobile Gantry Crane

,

cabin control Mobile Gantry Crane

3 Years After-sales Warranty Rail Mounted Container Mobile Gantry Crane



Mobile Gantry Crane Description



Rail-mounted container gantry crane is composed of main beam, rigid and flexible gantry legs, running trolley, hoisting mechanism, cart running mechanism, electrical system, operating cab, etc. According to the operation process of the yard, the cantilever is extended in the direction of the single door leg or the double door leg to become a single cantilever or double cantilever model, and the non-cantilever model is not extended. Different structural forms of no cantilever, single cantilever and double cantilever are determined according to the site, the container storage and transportation process and the vehicle (container truck or railway vehicle) to be loaded and unloaded.



Mobile Gantry Crane Drawings

Container Mobile Gantry Crane Rail Mounted Customized Cabin Control 0



Mobile Gantry Crane Parameters



Capacity
Under spreader 35tons
Duty Class
A6~A8
Span(rail to rail center)
30m or as required
Material handling
20’ 40’ 45’container
Cantilevers
According to your demand, but not more than 1/3 of span
Lifting height
16m or as required
Spreader
20' or 40' or 45’ telescopic spreader
Lifting speed(m/min)
0~20
Cross travelling speed(m/min)
0~30
Long travelling speed(m/min)
0~40
Power source
AC 380V 50HZ 3Ph (or other standard)
Control model
Cabin
Max.wheel pressure(KN)
290
Rail model
QU80



Mobile Gantry Crane Features



  1. Simple structure in linear type ,easy in installation and maintain.
  2. Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
  3. High pressure double crank to control the die opening and closing.
  4. Running in a high automatization and intellectualization, no pollution
  5. Apply a linker to connect with the air conveyor ,which can directly inline with filling machine



Rail Mounted Gantry Crane Details

Container Mobile Gantry Crane Rail Mounted Customized Cabin Control 1



Mobile Gantry Crane Safety devices



  • Safety Parameters
  • Weight overload protection device
  • Phase protection
  • Lifting limit switch
  • Cross travelling limit switch
  • Long traveling limit switch
  • Voltage lower protection function
  • Emergency stop system
  • Current overload protection system
  • Light and alarm system​



Package and Delivery



Container Mobile Gantry Crane Rail Mounted Customized Cabin Control 2



FAQ



1.Is your products customized?
Yes.because the working condition is different, all our products are customized, depending on the detail require, so if you give us more information, the accurate solution we can prepare for you.
2.What the information should i provide when i am inquiry?
The more information you provide, the accurate solution prepare for you! The information such as lifting height, lifting capacity, span, power source or other specials you provide will be much appreciated.
3.How many operation methods for my selection?
The standard operation methods we provide is pendent controller with push buttons, meanwhile,we also can provide remote control with push buttons or the cabin.
4.The space of my workshop is limited, can the crane is ok for me?
For low headroom workshop, we have special products. The details dimension our engineer will be design for you.
5.Do your side can provide lifting tools?
Yes, we can provide any kind of lifting tools such as hook, electromagnetic, grab...​
