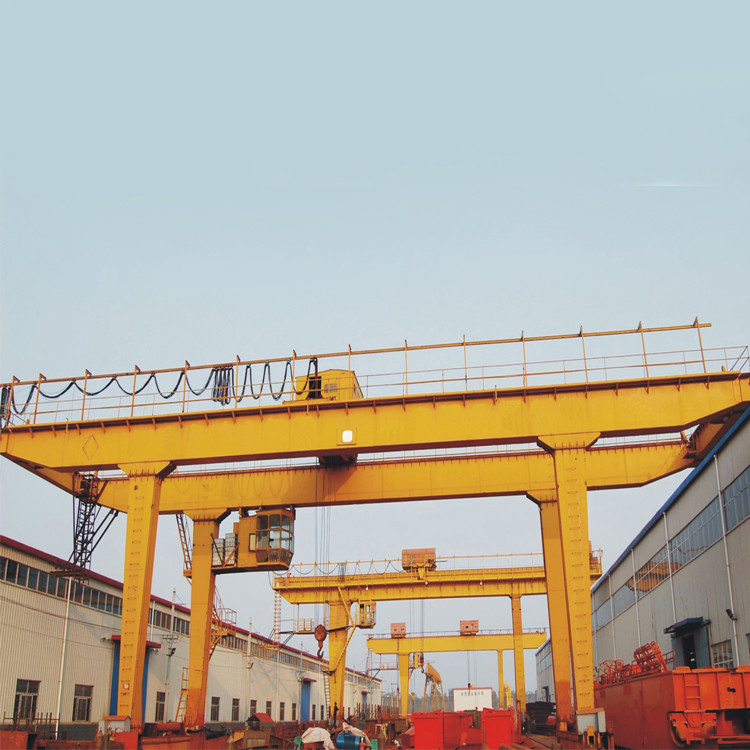

Movable A Frame Gantry Crane Heavy Duty 380V 50Hz

Movable A Frame Gantry Crane Heavy Duty 380V 50Hz
Movable A Frame Gantry Crane Heavy Duty 380V 50Hz Movable A Frame Gantry Crane Heavy Duty 380V 50Hz

Large Image :  Movable A Frame Gantry Crane Heavy Duty 380V 50Hz

Product Details:
Place of Origin: China (Mainland)
Brand Name: Dowellcrane
Certification: ISO CE BV CCC GOST
Model Number: RMG
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: $2000~30000/1 set
Packaging Details: Main body packaged by high quality water-proof plastic woven cloths; spare parts are packed in high quality plywood box.
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000 Sets per Year
Contact Now

Movable A Frame Gantry Crane Heavy Duty 380V 50Hz

Description
Product Name: A Frame Gantry Crane Control Method: Cabin Control/wire Rope Remote Control
Certification: CE,ISO Condition: New
Warranty: 3 Years Span: Customized
Feature: Gantry Crane Application: Outdoor,Warehouse,factory,workshop
Color: Customer Requirements After-sales Service Provided: Engineers Available To Service Machinery Overseas,Online Support,Field Maintenance And Repair Service
Highlight:

Movable A Frame Gantry Crane

,

Heavy Duty 380V Movable Gantry Crane

,

50Hz Movable Gantry Crane

Popular Quayside Using Heavy Duty Movable A Frame Gantry Crane



A Frame Gantry Crane Description



Quayside Container Gantry Crane is generally used to handle containers, boats/yacht, large component at the loading/unloading places and container yard. This crane is fitted with multiple hooking point’s spreaders to meet the needs of different lifting situations. The whole crane can carry out 360° steering with flexible movement.



Container Lifting Crane Drawings

Movable A Frame Gantry Crane Heavy Duty 380V 50Hz 0



Container Lifting Crane Parameters



Lifting Capacity/t
10
16
20/10
32/10
36/16
50/10
Span/m
22-35m
Main Hook Lifting(m/min)
8.5
7.9
7.2
7.5
7.8
6
Aux. Hook Lifting
/
/
10.4
10.4
10.5
10.4
Traveling of Trolley
43.8
44.5
44.5
41.9
41.9
38.13
Traveling of Crane
37.6/40
38/36
38/36
40
40/38
38
Operational Model
Cabin
Working Duty
A5.A6
Power Supply
Three-phase A.C. 380V, 50Hz or customized



Container Lifting Crane Features



1) Reasonable structure
2) Favorable performance
3) Smooth starting and stopping
4) Safe and reliable traveling

5) Low noise, commodious cabin and good view
6) Convenient maintenance, excellent exchangeability for parts and components
7) Saves electricity specifications



Container Lifting Crane Details

Movable A Frame Gantry Crane Heavy Duty 380V 50Hz 1



Container Lifting Crane Safety devices



  • Safety Parameters
  • Weight overload protection device
  • Phase protection
  • Lifting limit switch
  • Cross travelling limit switch
  • Long traveling limit switch
  • Voltage lower protection function
  • Emergency stop system
  • Current overload protection system
  • Light and alarm system​



Package and Delivery



Movable A Frame Gantry Crane Heavy Duty 380V 50Hz 2



Our Services



  1. We have a professional sales team,can privede u a quick and professional reply.
  2. Exclusive engineer support at any time, so we can design within 24 hours.
  3. 2 year warranty for whole machines, providing all parts free of charge.
  4. Low charge for continue maintenance when warranty is expired.
  5. Can produce the largest tonnage crane,just give us your demand.
  6. We can provide free training to end-users, don't worry about the installation.
