Product Details:
|
| Product Name: | Container Handling Gantry Crane | Control Method: | Cabin Control/wire Rope Remote Control |
|---|---|---|---|
| Certification: | CE,ISO | Condition: | New |
| Warranty: | 3 Years | Span: | Customized |
| Feature: | Gantry Crane | Application: | Outdoor,Warehouse,factory,workshop |
| Color: | Customer Requirements | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support,Field Maintenance And Repair Service |
| High Light: | Port Harbour Mobile Container Gantry Crane,Rail Mounted Mobile Container Gantry Crane,180mm Mobile Container Gantry Crane |
||

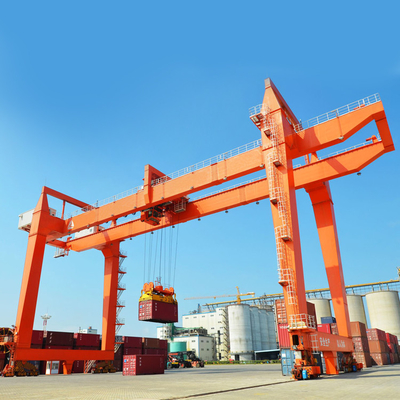

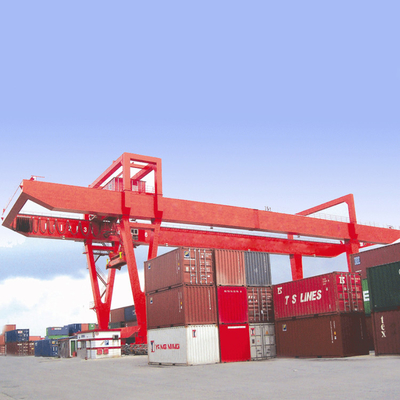

Heavy Capacity Port Harbour Rail Mounted Mobile Container Crane
Mobile Container Crane Description
Rubber Tyre Gantry Cranes(RTG) are special equipments to remove, load and unload international standard containers. Running and moving in the yard, it has the advantage of high production efficiency and fine maneuverability, also the small sensibility to unevenness of the ground. RTG has tractor trolley and standard trolley two models. RTG is powered by cable drum. At the same time, diesel generating set is equipped for conditions when the power is off or the crane moves to another yard.
Mobile Container Crane Drawings
Mobile Container Crane Parameters
|
Parameter(customizable)
|
||
|
Item
|
Technical parameter
|
|
|
Rated load
|
40T
|
|
|
Max. lifting height
|
2360mm
|
|
|
Max. lifting speed
|
0.04m/s
|
|
|
Self weight
|
9.5T
|
|
|
Model of generator set
|
KM385QB KM485QB
|
|
|
Generator power/Rated rotate speed
|
26/3300kw/r/min 35/3300kw/r/min
|
|
|
Max. torque/Rotate speed
|
85/2110~2310[Nm/r min] 115/2110~2310[Nm/r min]
|
|
|
Max. running speed
|
4km/h
|
|
|
Lifting hydraulic cylinder dia.
|
180mm
|
|
|
Lift system pressure
|
16Mpa
|
|
|
Steering hydraulic cylinder dia.
|
75mm
|
|
|
steering system pressure
|
15Mpa
|
|
|
Torque of hydraulic motor
|
949Nm
|
|
|
Hydraulic motor speed range
|
6~400r/min
|
|
|
Drive wheel dia.
|
450mm
|
|
|
Min. ground clearance
|
80mm
|
|
|
Outline dimension
|
Length
|
6000mm
|
|
Width
|
5800mm
|
|
|
Height
|
7500mm
|
|
Mobile Container Crane Features
●High efficiency of handling,stacking and overturning operations for over length,over width or overweight.subjects
●Adjustable operation speed,zero speed braking,noneed brake maintains
●Frame modular demountablestructure,easy installation
●Wireless remote control ofreliability and handl eability dual control lever with real-time operatingsystem,achieves unlimited sight
●Whole product with propersize and maneuverability
●Can add extra weigher andheight restriction digital indicator safety system
●According to user requirements can be customized design and manufacturing
Container Lifting Crane Details
Mobile Container Crane Safety devices
Package and Delivery
Our Services
FAQ
Q. What's the information should I provide when inquiry?
More details or drawings, better.
A: Lift capacity B: span C: lift height D: power sourceor other specials you give us will be more appreciated.
Q. How many operating methods for my selection?
Standard operating methods:
A: pendent controller with push buttons .B: remote control with push buttons
C: cabin(space capsule seat) control with joystick. Choose any type as you like.
Q. Can this type work in hazardous environment?
A:Sure! We can customize for you, acid proof or explosion proof, no problem for that.
Q. Can you provide the serious lifting tools?
A:Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!
Q. How can we install the crane?
A:Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
Q. Safety device
A:Overload limiter, Limit Switch (lifting and traveling), Interlock protection device.
