Product Details:
|
| Product Name: | Container Handling Gantry Crane | Control Method: | Cabin Control/wire Rope Remote Control |
|---|---|---|---|
| Certification: | CE,ISO | Condition: | New |
| Warranty: | 3 Years | Span: | Customized |
| Feature: | Gantry Crane | Application: | Outdoor,Warehouse,factory,workshop |
| Color: | Customer Requirements | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support,Field Maintenance And Repair Service |
| High Light: | Container Handling Gantry Crane,Mast Mobile Gantry Crane,Rubber Tire Type Gantry Crane |
||

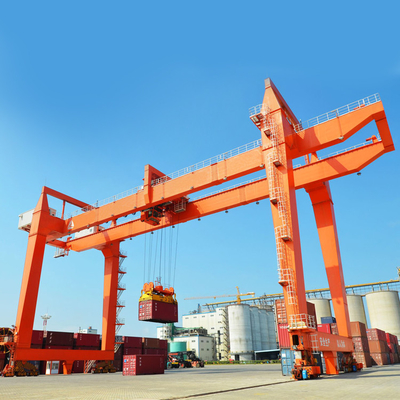

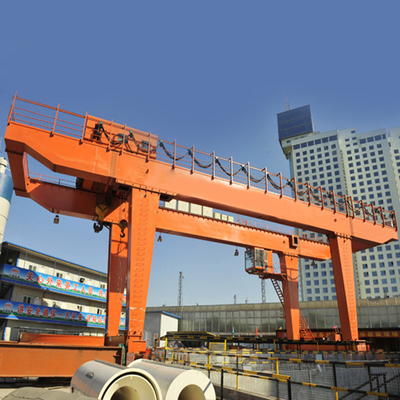

Mast Mobile Rubber Tire Type Container Handling Gantry Crane
Container Handling Gantry Crane Description
Container Handling Gantry Crane is a kind of lowest work cost crane of container,special suit for container platform. This crane adopt multicylinder diesel engine for power source with low noise and shake. Lifting & travel are hydraulic system; travel is driven by hydraulic motor. the lifting capacity is great and the system hydraulic pressure is low; lifting & dropping are reposefully and safely, the handling efficiency is great. The two main parts are independent movable mast with two-wheel driven and four-wheel steering, can rotate 90°most, could steer and translation of any angle. The turning radius is small, so easy to operate, suit hanging of many kind of containers.
Container Handling Gantry Crane Drawings
Container Handling Gantry Crane Parameters
|
Parameter(customizable)
|
||
|
Item
|
Technical parameter
|
|
|
Rated load
|
40T
|
|
|
Max. lifting height
|
2360mm
|
|
|
Max. lifting speed
|
0.04m/s
|
|
|
Self weight
|
9.5T
|
|
|
Model of generator set
|
KM385QB KM485QB
|
|
|
Generator power/Rated rotate speed
|
26/3300kw/r/min 35/3300kw/r/min
|
|
|
Max. torque/Rotate speed
|
85/2110~2310[Nm/r min] 115/2110~2310[Nm/r min]
|
|
|
Max. running speed
|
4km/h
|
|
|
Lifting hydraulic cylinder dia.
|
180mm
|
|
|
Lift system pressure
|
16Mpa
|
|
|
Steering hydraulic cylinder dia.
|
75mm
|
|
|
steering system pressure
|
15Mpa
|
|
|
Torque of hydraulic motor
|
949Nm
|
|
|
Hydraulic motor speed range
|
6~400r/min
|
|
|
Drive wheel dia.
|
450mm
|
|
|
Min. ground clearance
|
80mm
|
|
|
Outline dimension
|
Length
|
6000mm
|
|
Width
|
5800mm
|
|
|
Height
|
7500mm
|
|
Container Handling Gantry Crane Features
●High efficiency of handling,stacking and overturning operations for over length,over width or overweight.subjects
●Adjustable operation speed,zero speed braking,noneed brake maintains
●Frame modular demountablestructure,easy installation
●Wireless remote control ofreliability and handl eability dual control lever with real-time operatingsystem,achieves unlimited sight
●Whole product with propersize and maneuverability
●Can add extra weigher andheight restriction digital indicator safety system
●According to user requirements can be customized design and manufacturing
Container Handling Gantry Crane Details
Container Handling Gantry Crane Safety devices
Package and Delivery
Our Services
FAQ
1. Q: What's your MOQ?
A: 1 Set;
2. Q: What's your package?
A: Main body in plywood box or in plastic woven cloths; Spare parts in plywood boxes;
3. Q: What's your delivery period?
A: Within 10/25/40 days after your prepayment received; exact period should be based on detailed requirements and
actual period;
4. Q: What's your warranty period?
A: 12 months from winches accepted;
5. Q: Do you have engineer oversea installation service?
A: Yes; We have;
6. Q: What kinds of products do you have?
A: All kinds of industrial electric winch (especially non-standard); Overhead Crane; Gantry Crane, Electric Hoist; Screw Hoist; Radial/Flat Gate Hoist; Steel Gate; etc.
