Product Details:
|
| Product Name: | Cantilever Gantry Crane | Rated Loading Capacity: | 5-500t |
|---|---|---|---|
| Condition: | New | Warranty: | 2 Years |
| Max. Lifting Height: | Customized | Span: | 10.5-22m (Can Be Customized ) |
| Rated Lifting Moment: | Load Capacity | Application: | Port,Outdoor |
| After-sales Service Provided: | Field Installation,Online Support,Free Spare Parts | Feature: | Quayside Container Crane |
| Control Method: | Cabin Control | Color: | Optional |
| High Light: | Power Source AC Gantry Container Crane,Lift Shipping Container Crane,Cabin Control Gantry Container Crane |
||

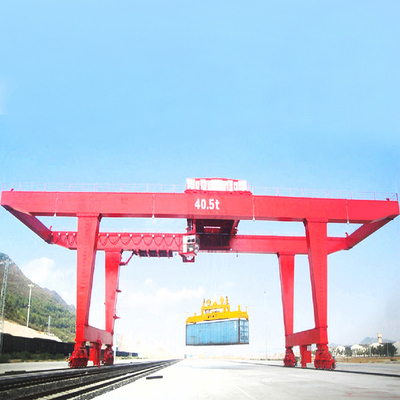

Power Source AC Gantry Crane to Lift Shipping Container Crane
Crane to Lift Shipping Container Description:
Rail Mounted Double Girder Container Gantry Crane (RMG) is suitable for loading and unloading of large span, frequently railway freight yard, port, open storage, container transfer station etc.. This machine adopts U type gantry, its legs headroom large (nearly 7 meters). It is suitable for heavy bulky cargo and container handling operations, with frequent high-level work, A5 ~ A8. The weight of 5 to 500 tons, the span of 18 to 35 meters, the girder can be designed have cantilever and no cantilever, the end of two main beam connected with end beams to meet the high level requirements.
Crane to Lift Shipping Container Parameter
| Rail mounted gantry crane technical specifications | ||||
| Capacity | t | 35 | 40.5 | |
| Span | m | 30 | 22 | |
| Lifting Height | m | 16 | 12.3 | |
| Work Duty | m | A6 | A7 | |
| Type of Container | 20' 40' 45' | |||
| Speed | Hoisting | m/min | 0~10 | 10/18 |
| Crab Travelling | 3.4~34 | 40 | ||
| Trolley Travelling | 2.9~29 | 45 | ||
| Rotation | r/min | - | 1.35 | |
| Rail | P43 | QU70 | ||
| Power | 3-Phase A.C. 380V 50Hz | |||
Crane to Lift Shipping Container Drawing
Safety Device
Mobile Harbour Crane Details Show:
Certifications
Package and Delivery
1. Electric parts are packed by high quality plywood crate, to reduce distortion in conveying;
2. Main beams, end beams and electric hoist are packed by plastic woven cloth. It can reduce abrasion when transport.
Delivery
1. If the size of whole crane are suitable for container ship, usually by container;
2. If the size is too big, usually by bulk ship or by container after truncation;
3. Transport ways are based on reducing cost for you and keep the crane performance!
