Product Details:
|
| Product Name: | Shipping Container Crane | Hoisting Mechanism: | Wire Rope |
|---|---|---|---|
| Control Way: | Radio Control+cabin Control | Color: | Customized |
| Crane Traveling Speed: | 20-30 M/min | Working Duty: | A3-A7 |
| Ambient Temperature: | -20℃~+40℃ | Lifting Mechanism: | Hydraulic Lift |
The Shipping Container Crane is a versatile gantry crane designed specifically for loading and unloading cargo containers. It is an ideal solution for terminals, ports, and other cargo handling areas. This crane is powered by a hydraulic lift system and can be controlled from the radio or cabin. It has a traveling speed of 20-30 M/min and a span of 18-25 meters. It can handle a wide range of ambient temperatures ranging from -20℃ to +40℃ and is rated for A3-A7 duty. The crane is designed to be reliable, efficient, and cost-effective and is equipped with rubber tyred gantry crane technology. The Shipping Container Crane is the perfect choice for your cargo handling needs.
| Model | LJ35/40-23 | LightType LJ40-23 |
| Capacity(under spreader) (t) | 35,40 | 40 |
| Work Duty | A7,A8 | A6,A7 |
| Span (m) | 23.47 | 23.47 |
| Lifting Height (m) | 12.2~17.8 | 16.5 |
| Stack Layers/Passing Layers | 3/4~5/6 | 5/6 |
| Container Model | 20',40',45' | 20',40',45' |
| Spreader Rotating Angle | ±5° | ±5° |
| Hoisting Speed (m/min) | 13/26,23/52 | 12/18,18/28 |
| Cross Travel Speed (m/min) | 50,70 | 24 |
| Long Travel Speed (m/min) | Full Load-90,Without Load-130 | Full Load-20,Without Load-40 |
| Max.Wheel Load (kN) | 310 | 310 |
| Total Rating (kW) | 150,230 | 110,150 |
| Power Supply | Electric,Diesel engine,Electric-Diesel drive | |

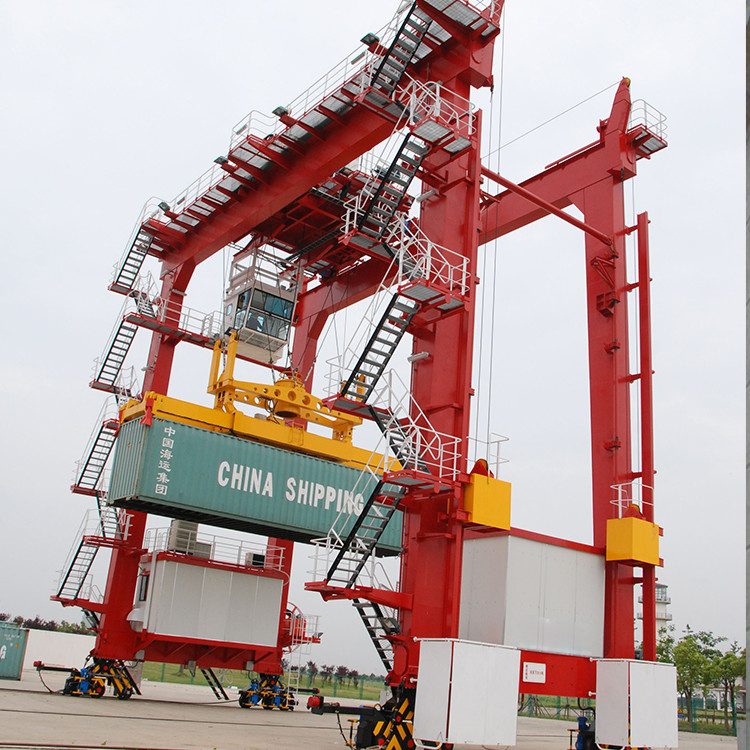

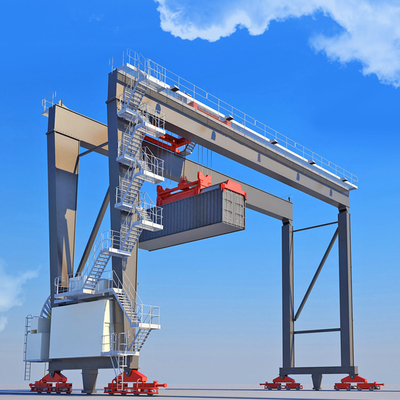

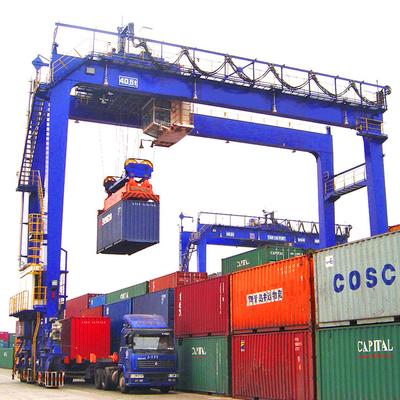

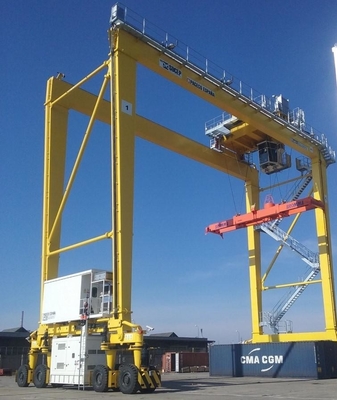

Dowell Crane's RTG (Rubber Tyred Gantry) Crane is the ideal industrial equipment for cargo handling operations in ports and industrial areas. This crane is equipped with radio control and cabin control technology for precise and safe operations. It also has a wide range of spans (18-25 meters) and lifting heights (20-30 meters) and a capacity of 1-100 tons to meet the needs of any port or industrial area. The RTG Crane's advanced design and quality materials make it resistant to temperature variations, with an ambient temperature range of -20℃~+40℃.
The RTG Crane is certified with the highest standards, such as CE and ISO, and it is available for purchase in minimum sets of one. The delivery time for the Dowell Crane RTG Crane is 90 working days and payment terms include L/C and T/T. The company has a production capacity of 5000 sets per year. The packing details include wooden cases for electric parts and plastic woven cloth for other components, which guarantees a safe and abrasion-free transportation.
The Dowell Crane RTG Crane is the perfect choice for cargo handling in ports and industrial areas. It is reliable, efficient, and cost-effective. The price of one RTG Crane is 100000 USD.
We are dedicated to providing the best technical support and service for our Shipping Container Crane products. Our team of professional engineers and technicians are available to help with any questions you may have regarding installation, operation, maintenance and repair of your Shipping Container Crane.
We can provide assistance with troubleshooting, diagnostics, and problem solving for your Shipping Container Crane. We also offer comprehensive training and certification programs for operators and technicians, as well as preventive maintenance and repair services.
Our knowledgeable customer service team is available to answer questions and provide technical support for your Shipping Container Crane. We can also provide spare parts and accessories, as well as offering advice on the best methods for maintaining and operating your Shipping Container Crane.
We are committed to providing the highest level of customer service and technical support for your Shipping Container Crane. Contact us today to find out more about our technical support and service options.
The Shipping Container Crane is packed and shipped in a secure and protected manner. The following details the steps taken to ensure the product arrives safely to its destination:
