Product Details:
|
| Product Name: | Rubber Tyred Gantry Crane | Span: | 18-25 Meters |
|---|---|---|---|
| Crane Traveling Speed: | 20-30 M/min | Capacity: | 1-100 Ton |
| Ambient Temperature: | -20℃~+40℃ | Control Way: | Radio Control+cabin Control |
| Color: | Customized | Hoisting Mechanism: | Wire Rope |

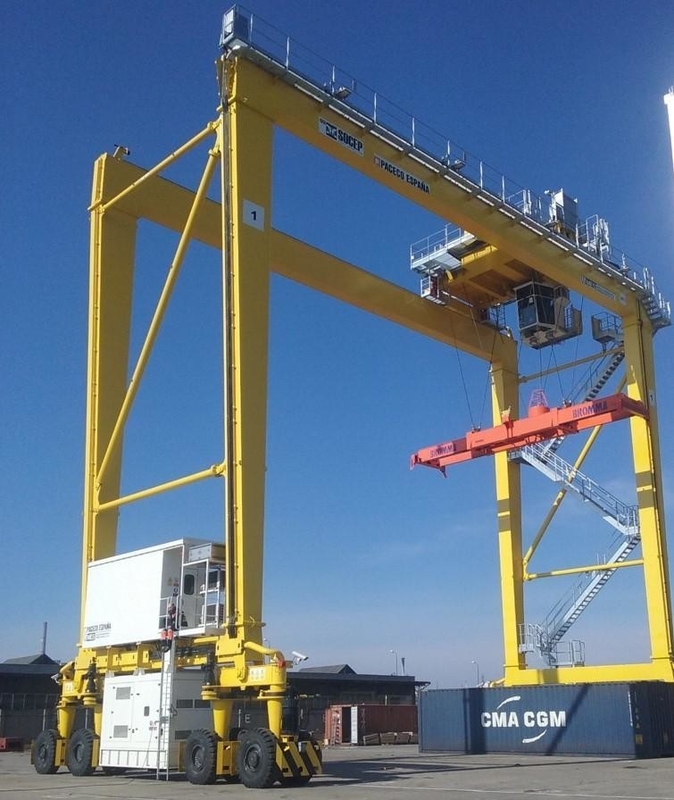

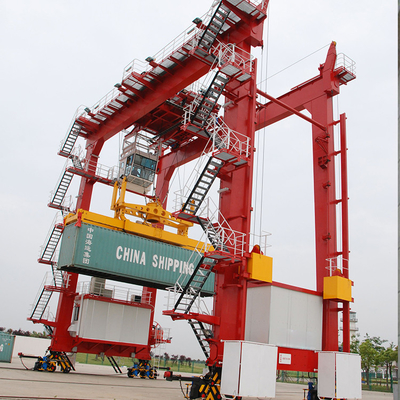

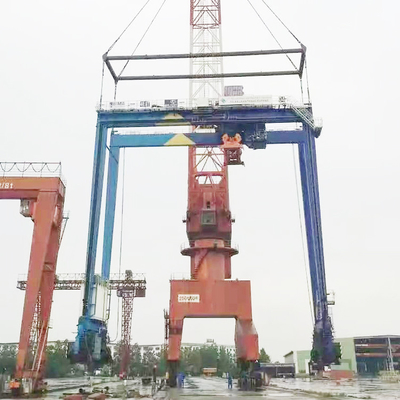

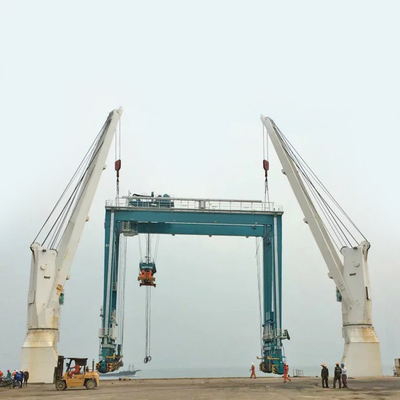

High Performance Shipping Container Rubber Tyred Gantry Crane
Our Shipping Container Crane is an efficient and reliable RTG crane that helps in handling containers for loading and unloading. It is equipped with a hydraulic lift system that can lift a capacity of 1-100 Ton to a maximum height of 20-30 Meters. The crane can be operated in two ways: Radio Control and Cabin Control. The hoisting mechanism is powered by a robust wire rope system, offering a high level of safety and reliability.
The Shipping Container Crane is an ideal choice for ports and other industries that heavily rely on the transport of containers. The crane is designed to handle heavy loads with ease and offers a highly efficient and cost-effective way of loading and unloading containers.
The Radio Control and Cabin Control options give the user the flexibility to operate the crane in a variety of situations. The robust wire rope system ensures that the crane can safely handle heavy loads, making it an ideal choice for handling containers.
Our Shipping Container Crane is an efficient and reliable RTG crane that helps in handling containers for loading and unloading. It is equipped with a powerful Hydraulic Lift system, Radio Control and Cabin Control options, and a robust Wire Rope system, making it the perfect solution for ports and other industries that require a reliable and efficient way of transporting containers.
| Model | LJ35/40-23 | LightType LJ40-23 |
| Capacity(under spreader) (t) | 35,40 | 40 |
| Work Duty | A7,A8 | A6,A7 |
| Span (m) | 23.47 | 23.47 |
| Lifting Height (m) | 12.2~17.8 | 16.5 |
| Stack Layers/Passing Layers | 3/4~5/6 | 5/6 |
| Container Model | 20',40',45' | 20',40',45' |
| Spreader Rotating Angle | ±5° | ±5° |
| Hoisting Speed (m/min) | 13/26,23/52 | 12/18,18/28 |
| Cross Travel Speed (m/min) | 50,70 | 24 |
| Long Travel Speed (m/min) | Full Load-90,Without Load-130 | Full Load-20,Without Load-40 |
| Max.Wheel Load (kN) | 310 | 310 |
| Total Rating (kW) | 150,230 | 110,150 |
| Power Supply | Electric,Diesel engine,Electric-Diesel drive | |
Dowell Crane RTG, a port rubber tyred gantry crane, is a perfect solution for shipping container handling. It is designed with a hydraulic lift, which can provide reliable and efficient lifting with a maximum lifting height of 20-30 meters. The crane traveling speed is 20-30 m/min, and the span is 18-25 meters. It is customizable in color, and the minimum order quantity is 1 set with a price of 100000 USD. The certification is CE and ISO. The package is wooden case for electric parts and plastic woven cloth for the others, which can reduce the abrasion during transport. The delivery time is 90 work days, and the payment terms are L/C, T/T. The supply ability is 5000 sets per year.
We provide comprehensive technical support and service for our Shipping Container Cranes, ensuring that your crane is working safely and efficiently.
Our team of experienced and qualified technicians can provide support for a variety of services, including:
If you have any questions or need assistance, please contact us directly. We are always here to help you.
